Network Audio Player ST-C700D

ST-C700D

Premium Class Audio Player

Effectively removes noise to deliver a pure listening experience.
  • logo of MQA
  • TIDAL
  • Spotify

Features

Digital Noise Isolation Architecture

Concept of Digital Noise Isolation Architecture, Photo
Just like the R1 series, the ST-C700 employs a jitter remover, a common mode filter for its LAN input, and a pulse transformer for its digital interface, thus improving the purity of its sound by blocking the entry of external noise.

Virtual Battery Operation

Graph of Virtual Battery Operaion
Virtual Battery Operation reduces noise generated by the power supply circuit by using the reference potential generating circuit for charging the capacitor.

Optimally Activated Circuit System

The Optimally Activated Circuit System shuts down unneeded digital modules, such as those for display, network, USB and digital interfaces, to minimise the noise generated during playback.

Technics Music App for Smartphones

Photo of Technics Music App

The Technics Music App enables you to select a music source and playback equipment, and create playlists easily and comfortably on the screen of a tablet or smartphone. The Music App screen displays the music stored on a connected DLNA-compatible server, content stored on the device running the App, and music files on connected USB memory devices, giving you integrated playback control. Used with the SE-R1 or SU-C700, the Technics Music App not only allows you to control the volume and playback operations, but also lets you adjust the Bass, Mid and Treble levels.

Find out more

High Res Re-master

Graphs of High Res Re-master
Technics High Res Re-master converts an audio source to a high-resolution signal of up to 192 kHz/32 bits, pushing the effects of any digital noise beyond the audible band, and allowing natural and expressive sound, closer to the original music.

Ultra Low Distortion Oversampling Digital Filter

Graph of Ultra Low Distortion Oversampling Digital Filter
The oversampling digital filter incorporating Technics' original algorithm accurately removes the image to the -160 dB level or lower by using an oversampling digital filter, thus reproducing sound rich with spatial expression.

High Quality Analog Circuit

Photo of D/A Converter
The ST-C700 uses Technics’ low-noise Digital Noise Isolation Architecture, a high-precision clock, and a high-precision D/A converter (Burr-Brown PCM1795(Texas Instruments)). The analogue circuits use high-quality components for the purest possible sound.

Get Inspired

Specs

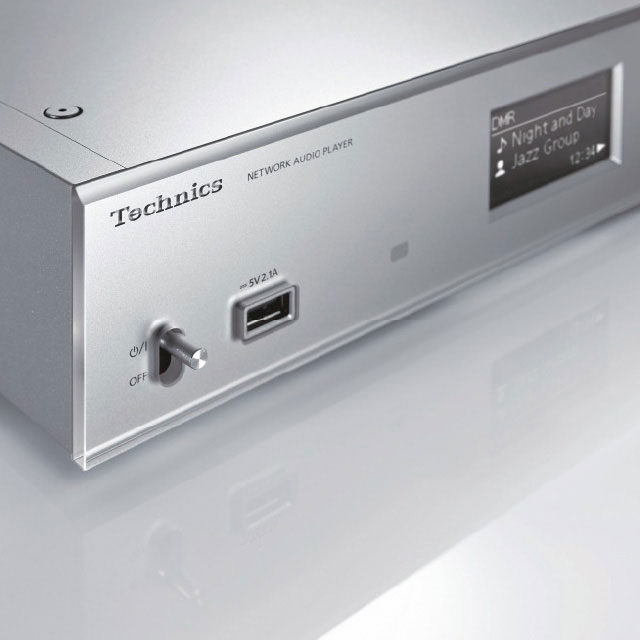

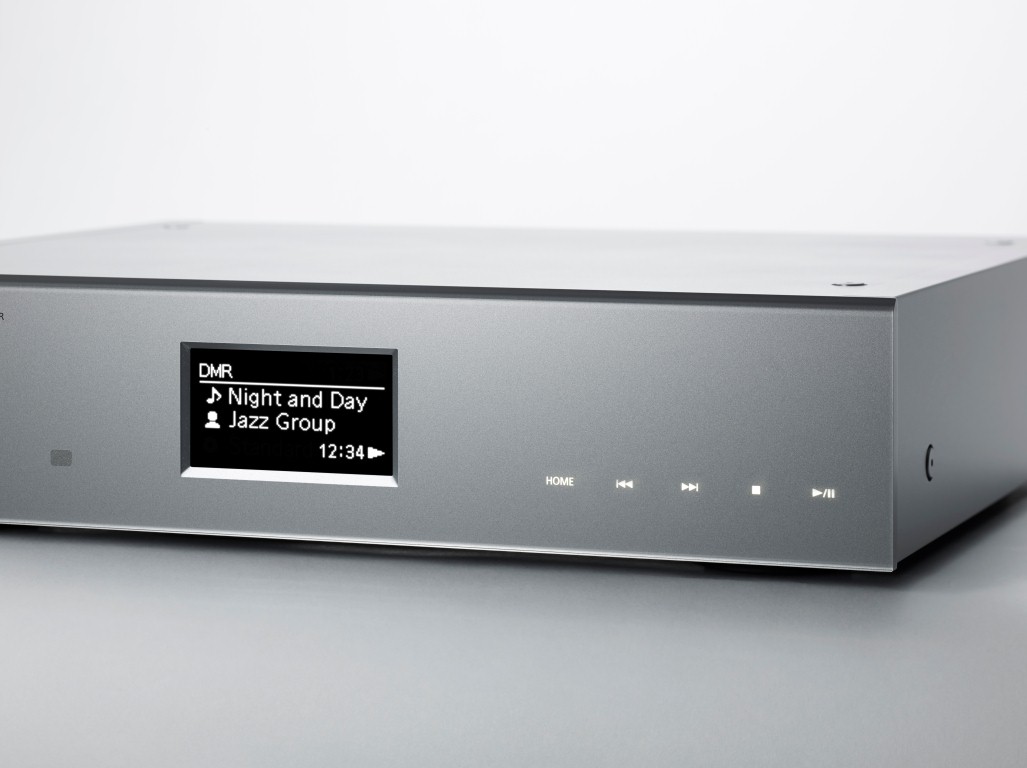

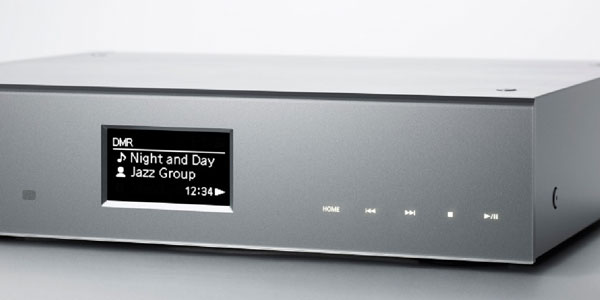

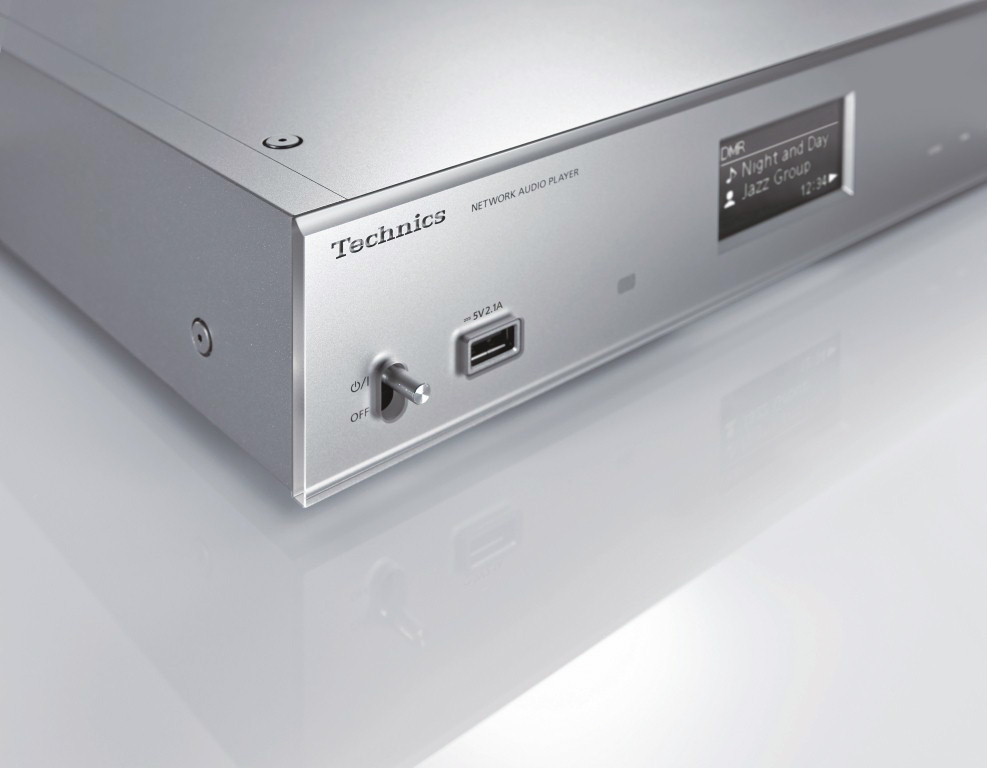

Photo of Network Audio Player ST-C700D

Size and Weight

Height
78mm
Width
340mm
Depth
305mm
Weight
4.0kg

Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
The MQA logo is a trademark of MQA Limited. © MQA Limited 2017

Digital Noise Isolation Architecture

Virtual Battery Operation

Optimally Activated Circuit System

High Res Re-master

Ultra Low Distortion Oversampling Digital Filter

High Quality Analogue Circuit

Noiseless Signal Technology

  • Digital Noise Isolation Architecture
    Virtual Battery Operation
    Ultra Low Distortion Oversampling Digital Filter
    High Res Re-master
    Optimally Activated Circuit System
    High Quality Analogue Circuit
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    Touch Switch Control
    Symmetric Structure

Frequency Response

  • 2 Hz - 90 kHz (-3 dB)

Dynamic Range (IHF-A)

  • 112 dB

Signal to Noise Ratio (IHF-A)

  • 112 dB

THD+N

  • 0.0012 % (1 kHz, 0 dB)

Digital Input Terminal

  • USB-A, USB-B

USB-A

  • iPod/iPhone/iPad

    • Yes
  • Support Codec

    • WAV
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz)
    • AIFF
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • AAC
      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MP3
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MQA
      • Yes

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB Audio Class 2.0, Asynchronous Mode
  • Support Codec

    • DSC
      • Yes (2.8 MHz, 5.6 MHz)
    • PCM
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
    • MQA
      • Yes

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MQA

    • Yes

Analogue Output Terminal

  • LINE x 1

Digital Output Terminal

  • Coaxial Digital x 1, Optical Digital x 1

Ethernet interface

  • LAN (100 Base-TX/10 Base-T)

System Port

  • System Control Input/Output (Φ3.5 mm Jack)

AirPlay

  • Yes

Bluetooth® (Support codec)

  • Yes (Qualcomm® aptX™ Low Latency, AAC, SBC)

TIDAL / Spotify

  • Yes* / Yes*
    *Compatible music streaming services will be supported sequentially through firmware updates.
    *Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
    *Registration/subscription may be required. Fees may apply.

NFC (Near Field Communication)

  • Yes

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC220-240 V, 50 Hz/60 Hz

Power Consumption

  • 26 W

Dimensions (W x H x D)

  • 340 x 78 x 305 mm

Weight

  • Approx. 4.0 kg

Accessories

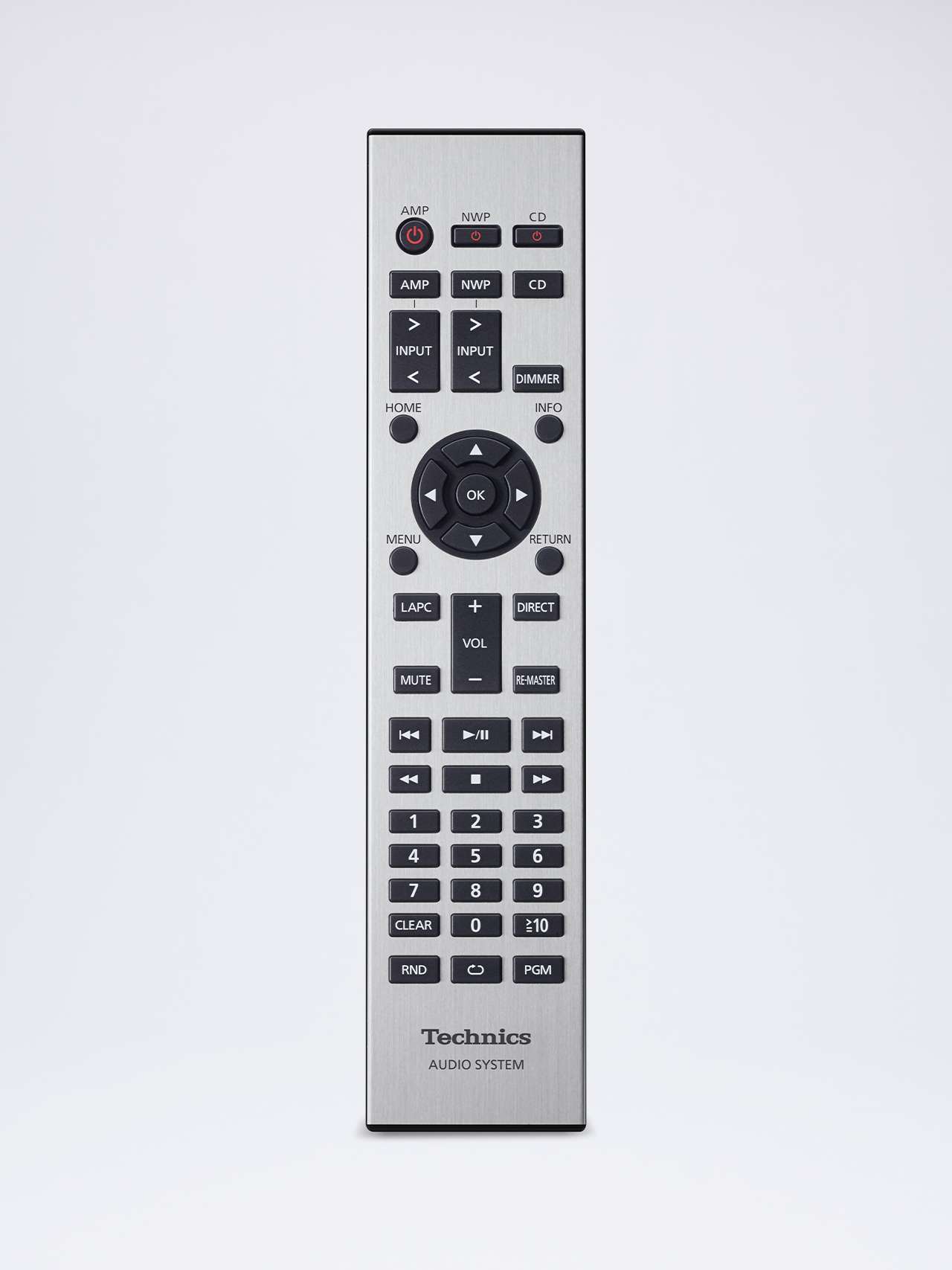

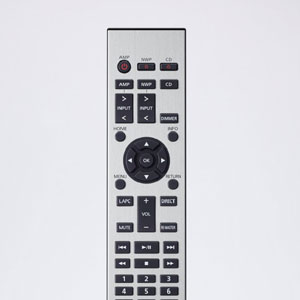

  • Remote Control, AC Cord, Coaxial Digital Cable, Control Cable, Operating Instructions
