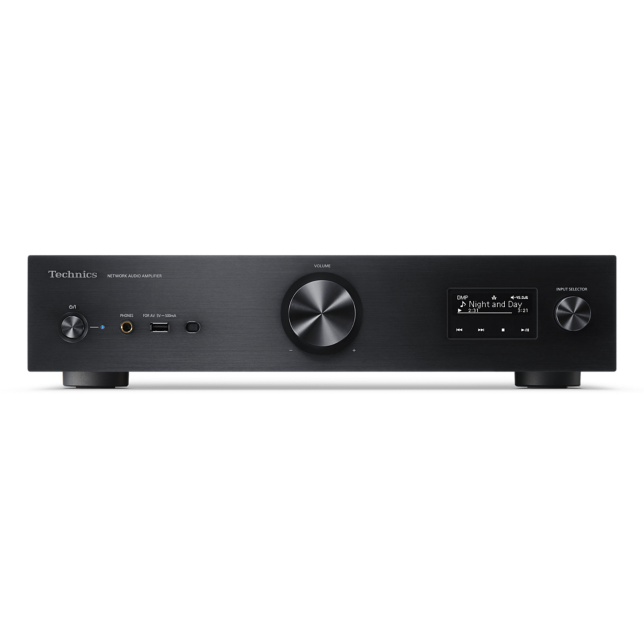

SU-GX70EB-S SU-GX70EB-K

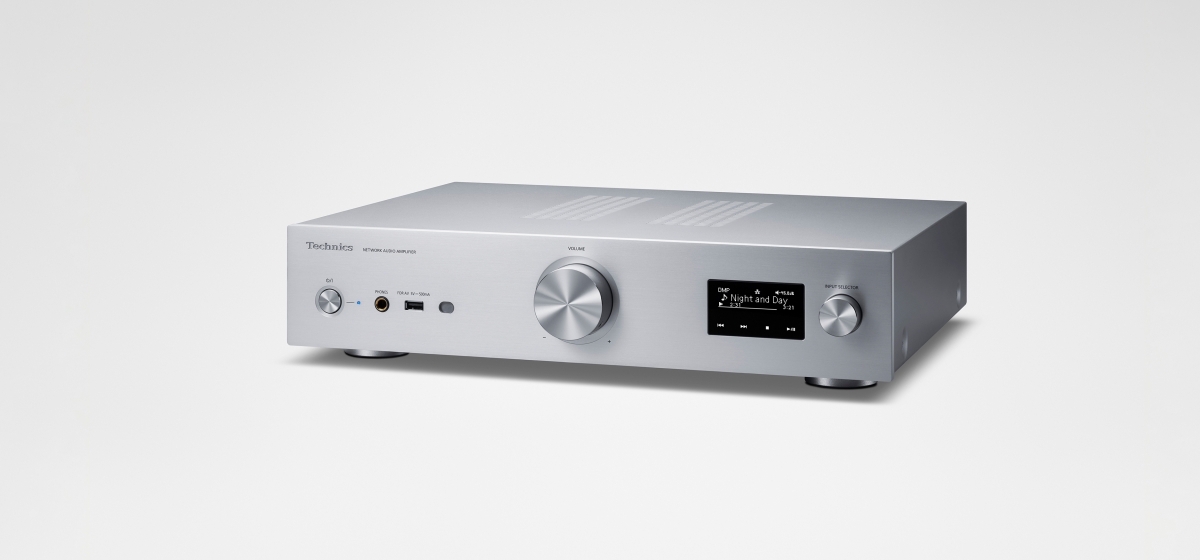

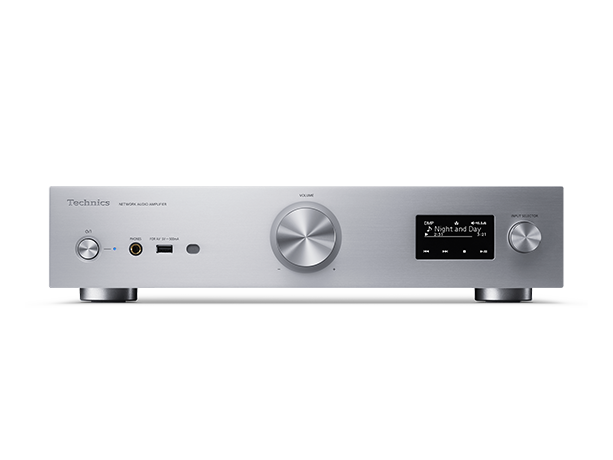

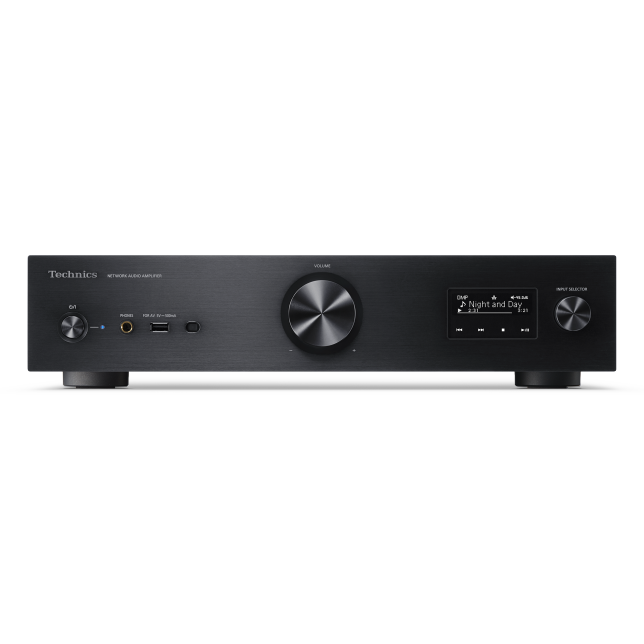

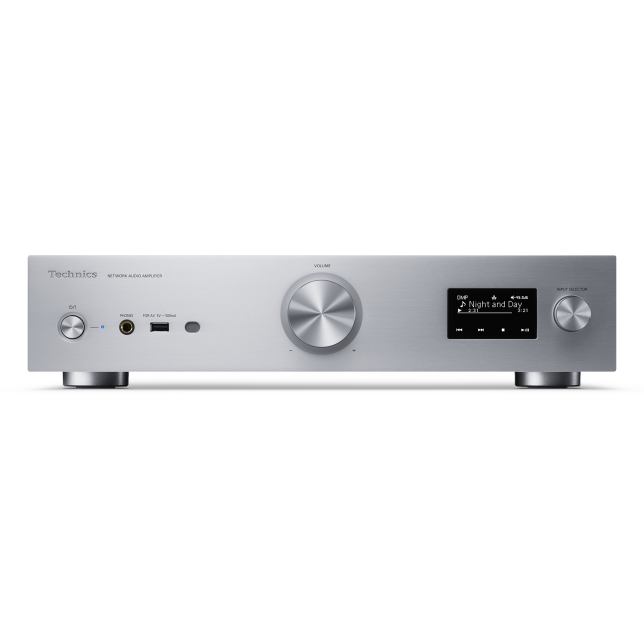

Network Audio Amplifier SU-GX70

SU-GX70

Grand Class Network Audio Amplifier

The definitive living room audio center that enables seamless enjoyment of video, audio, and music through next-level integration using Technics’ full digital technologies.

Features

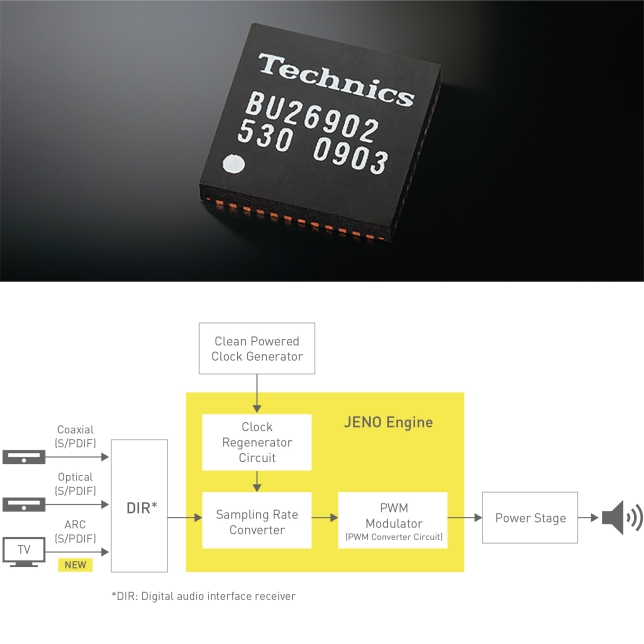

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
The SU-GX70 uses a fully digital amplifier that incorporates Technics’ renowned digital audio technology. Its digital transmission system processes signals fully digitally in all stages from input to output. Compared to analogue transmission, this system is less susceptible to signal degradation caused by external noise, ensuring more precise signal transmission. Accurate signal processing not only delivers high-resolution digital audio but also maintains the soft texture inherent in analogue recordings.
Further, a JENO Engine has been used in the HDMI ARC (Audio Return Channel), which has been installed in a Technics product for the first time. This helps to reduce any degradation in sound quality caused by jitter during the transmission of digital audio signals (S/PDIF), ensuring unparalleled levels of clarity in TV audio.

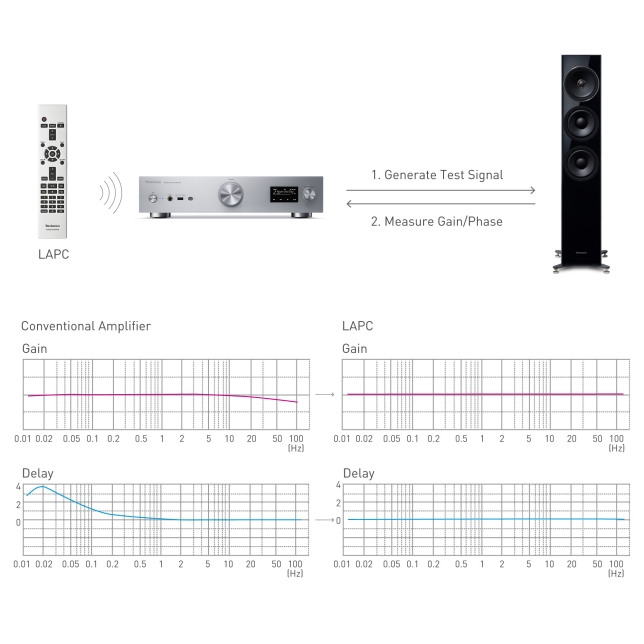

Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)

Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)
Speaker impedance changes with each frequency and a power amplifier is required to drive speakers without being affected by the speaker’s characteristics. However, conventional digital amplifiers are connected to speakers through a low-pass filter at the output stage, so they are even more strongly affected by the speaker impedance characteristics. Also, although the amplitude characteristics of conventional amplifiers due to negative feedback were improved, the phase characteristics could not be enhanced.

We thus developed a speaker impedance adaptive optimisation algorithm that performs correction to the ideal impulse response through digital signal processing by measuring the frequency amplitude-phase characteristics of the amplifier with the speakers connected. This technique enables flattening of the frequency characteristics of amplitude and phase, which had previously not been achieved by amplifiers, while also delivering a sound with rich spatial expression.

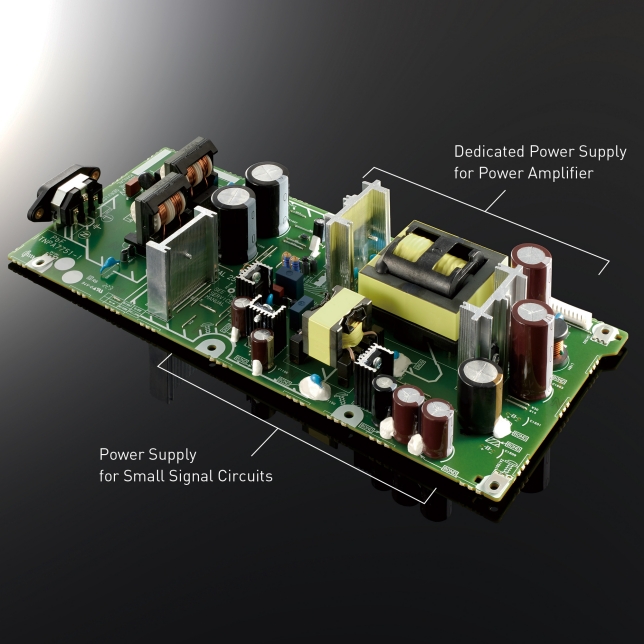

Twin Power Supply Circuit System

Twin Power Supply Circuit System
The design of the power supply is extremely critical in audio systems containing amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SU-GX70 is equipped with a dedicated power supply for the power amplifier circuits that is independent from all other circuits. As such, the same electrolytic capacitors installed in high-end models have been used in the dedicated amplifier power supply and the power amplifier components.

The SU-GX70 uses a high-speed switching power supply of approximately 130 kHz. By increasing the switching frequency, noise interference on the music playback bandwidth is reduced. This enables highly responsive power supply for music signals and powerful speaker drive capability.

High-quality Audio through Low-impact HDMI Video Output

High-quality Audio through Low-impact HDMI Video Output

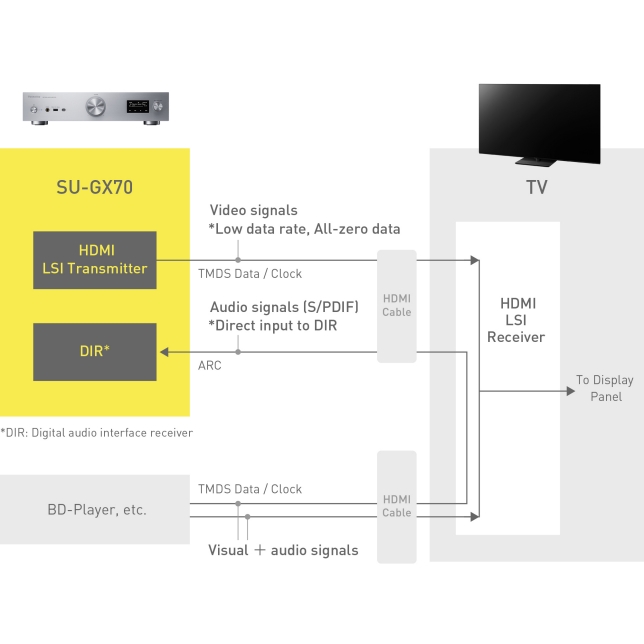

For the SU-GX70 to receive audio signals through the HDMI ARC (Audio Return Channel), due to the specifications, video signals must first be output from the SU-GX70. However, the output of these signals can cause unwanted noise.
As such, the video signals are output from the SU-GX70 at a lower rate, and the digital value of the colour of each pixel is set to zero. This ensures low-load operation between the HDMI transmitting/receiving devices, preventing any unwanted noise generation from the video signals. This also reduces any impact on sound quality. Further, transmitting the signals from the TV to the JENO Engine via the shortest possible route minimises any further impact from jitter. This is a mechanism unique to Panasonic/Technics as HDMI licensors.

Pure Amplification Mode

Pure Amplification Mode

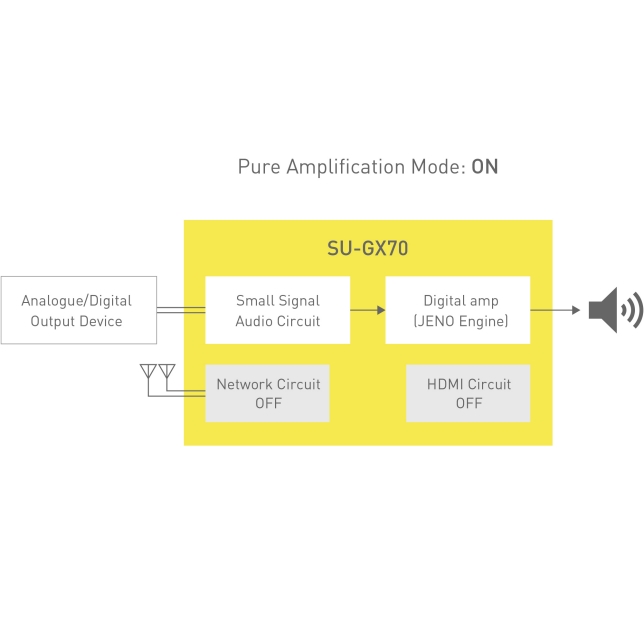

In Pure Amplification Mode, shutting off the power supply to the network and HDMI circuits removes any noise from the device or antenna. This ensures music playback with even better clarity.
*Network and HDMI circuits can also be individually shut off.

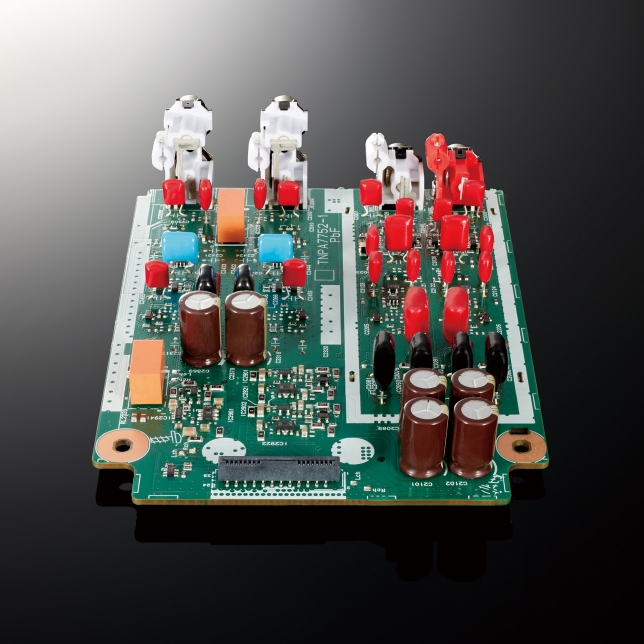

Analogue Input Using Discrete Amp Circuits

Analogue Input Using Discrete Amp Circuits
The discrete amp circuit used in the SU-GX70 was redesigned and adapted from the circuit used in the SU-R1000, and the same symmetrical layout has been used.
Further, other high-quality audio parts of the same grade as those used in the SU-R1000 have also been adopted, such as low-noise FETs, thin-film resistors, film capacitors, and electrolytic capacitors. In this way, the device has been fine-tuned to every detail.

Abundant Input Options, Diverse Network Functions

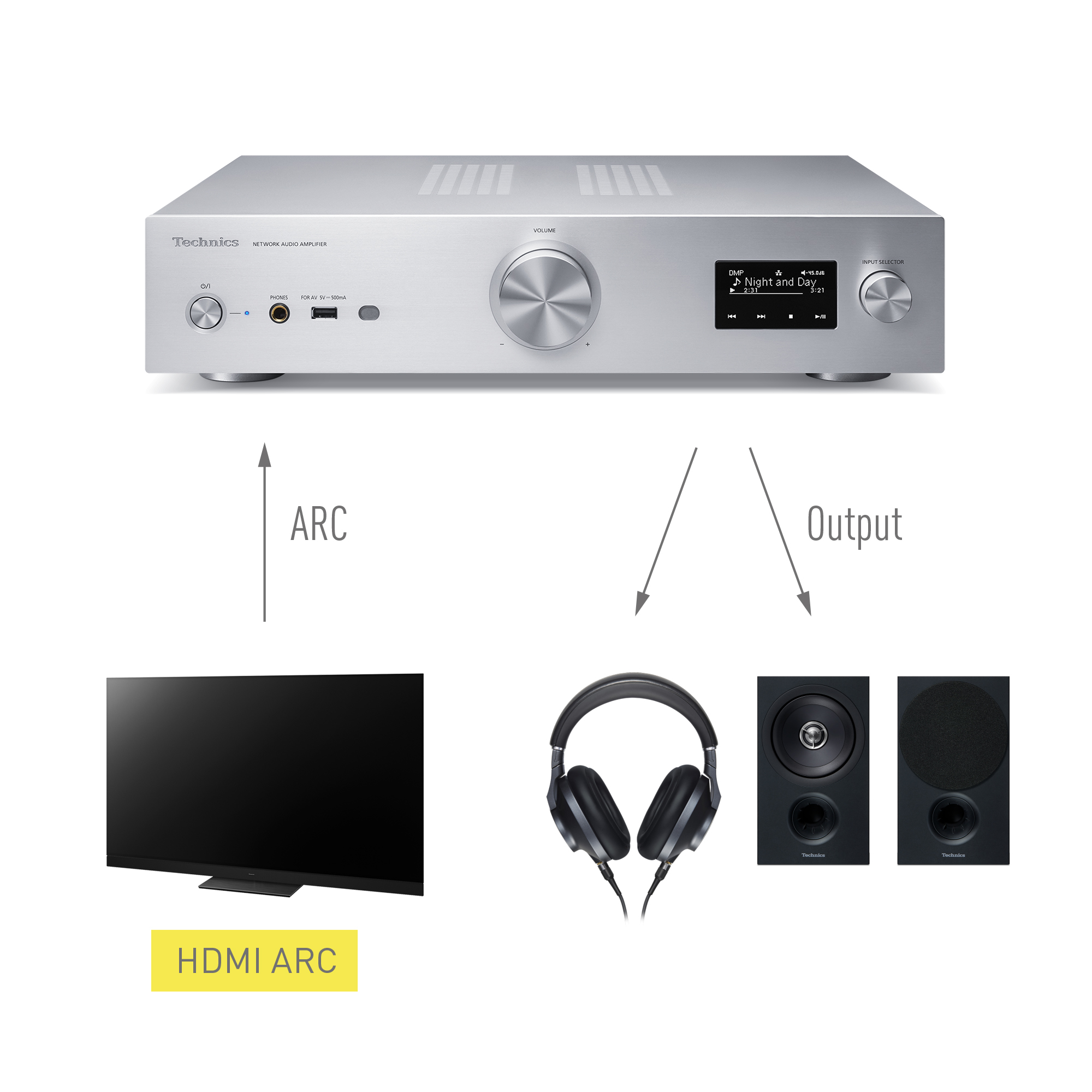

Newly equipped with an HDMI ARC, low-impact HDMI video output ensures users can enjoy high-quality music and audio from the video source.
High-quality music and audio from video source

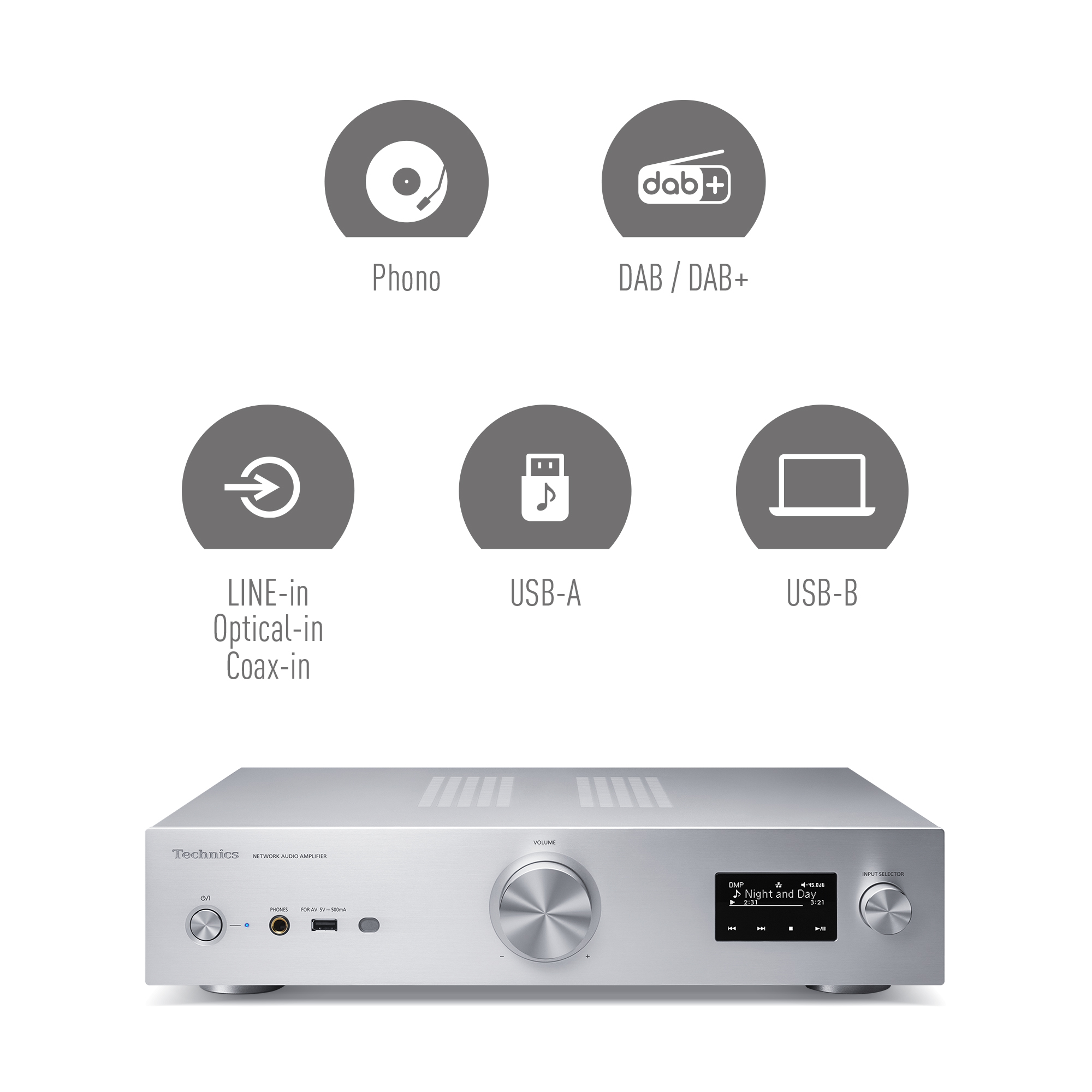

The SU-GX70 supports a variety of music sources including radio, analogue input (PHONO(MM)/LINE), optical digital input (such as TV), coaxial digital input and USB input.
Compatible with a variety of music sources

The SU-GX70 can play back high-resolution music wirelessly from the source stored in a smartphone, tablet or PC. It supports not only Bluetooth® and AirPlay2 but also Spotify Connect®, Internet radio and Chromecast built-in™ so that a wide range of music streaming services can be enjoyed only with the SU-GX70.
Enjoyment of high-quality sound wirelessly

Get Inspired

Specs

Size and Weight

Height
98mm
Width
430mm
Depth
368mm
Weight
6.6kg

*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. This product is compatible with AirPlay 2. iOS 11.4 or later is required.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®. The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance®.
Google, Google Home, and Chromecast builtin are trademarks of Google LLC. Google Assistant is not available in certain languages and countries.

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)

Twin Power Supply Circuit System

High-quality Audio through Low-impact HDMI Video Output

Pure Amplification Mode

Analogue Input Using Discrete Amp Circuits

Output Power

  • 40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF)
    80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF)

Load Impedance

  • 4Ω-16Ω

Frequency Response

  • PHONO (MM)

    • 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω )
  • LINE

    • 20Hz - 40kHz ( -3dB, 4Ω )
  • DIGITAL

    • 20Hz - 80kHz ( -3dB, 4Ω )

Input Sensitivity / Input Impedance

  • PHONO (MM)

    • 2.0 mV / 47 kΩ
  • LINE

    • 200 mV / 23 kΩ

Analogue Input Terminal

  • LINE x 2
    PHONO (MM) x1

Digital Input Terminal

  • Optical digital x2
    Coaxial digital x1
    USB-A x1
    USB-B x1

Analogue Output Terminal

  • PRE OUT x1

Digital Output Terminal

  • HDMI ARC

Headphone Output

  • Yes, Stereo Φ6.3 mm

USB-A

  • USB Audio Class Specification

    • USB 2.0 High-speed
      USB Mass Storage class
  • iPod/iPhone/iPad

    • No
  • Support Codec

    • WAV
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
    • FLAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
    • AIFF
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
    • ALAC
      • Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
    • AAC
      • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
    • MP3
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)

PC(USB-B)

  • USB Audio Class Specification

    • USB 2.0 High-speed
      USB Audio Class 2.0, Asynchronous mode
  • Support Codec

    • LPCM
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
  • DSD contol mode

    • ASIO Native mode, DoP mode

MQA Decorder

  • Yes

LAN(DMR)

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100BASE-TX/10BASE-T)

Wi-Fi

  • IEEE 802.11a/b/g/n/ac/ax
    2.4 GHz band / 5 GHz band

Chromecast built-in

  • Yes

AirPlay 2

  • Yes

Bluetooth® (Support codec)

  • Yes (AAC, SBC)

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC 220 V - 240 V,50/60 Hz

Power Consumption

  • 63W

Dimensions (W x H x D)

  • 430 mm × 98 mm × 368 mm

Weight

  • Approx. 6.6 kg

Accessories

  • AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual

Reviews

USER REVIEWS

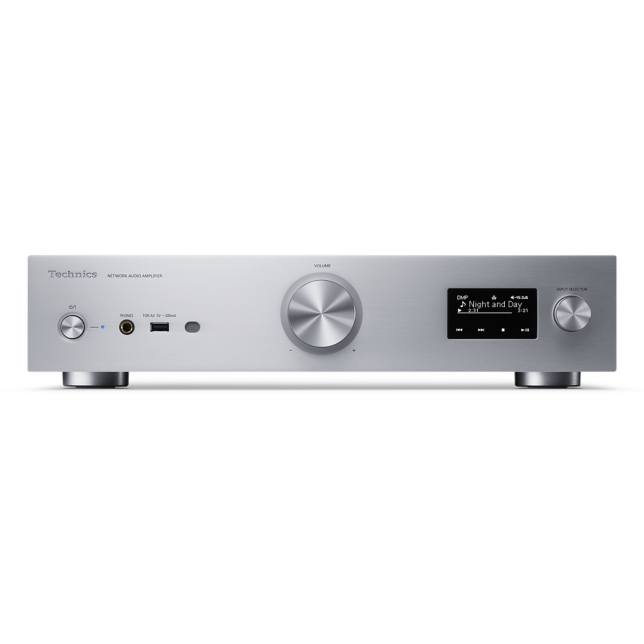

Photo of Network Audio Amplifier SU-GX70
