ALL-IN-ONE MUSIC SYSTEM SC-C70

SC-C70

Premium Class Music System

All-in-one music system with CD, radio, USB playback and Bluetooth connectivity, all in an elegant & timeless design.
  • dlna certified
  • AirPlay
  • WiFi Certified
  • Wi-Fi Protected Setup

Features

JENO Engine

JENO Engine

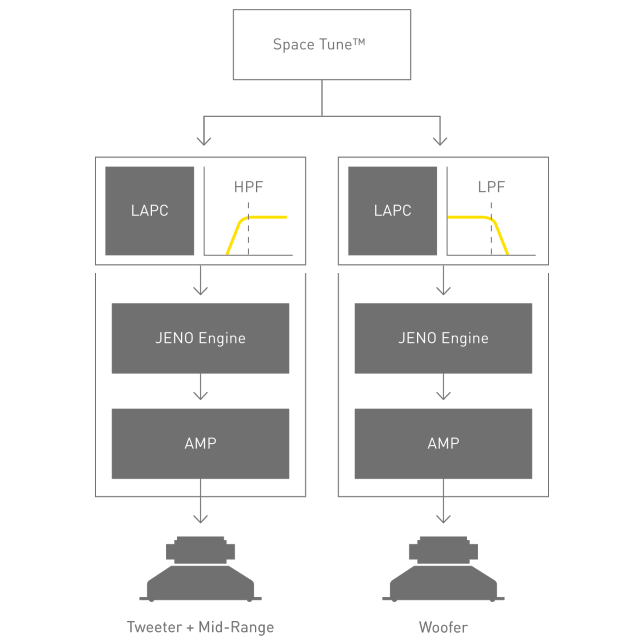

The amp section of the OTTAVA™ f succeeds the Technics Reference System design concept and embraces a fully-digital amp configuration equipped with JENO Engine (Jitter Elimination and Noise-shaping Optimization) in order to deliver all of the audio data contained in the high-resolution sound source faithfully to the speakers without loss. Moreover, the OTTAVA™ f is equipped with three units of the same JENO Engine as those used in our high-end models to optimally drive the built-in speakers, thus achieving a high-quality, integrated hi-fi system that meets Technics standards. It adopts a bi-amp structure to separately drive the woofers (low-frequency sound) and tweeter/mid-range speaker units (mid-/high-frequency sound), and utilises the high-performance signal processing circuitry (DSP) mounted in the JENO engine to achieve precise channel dividing, adjustment of time alignment between speaker units, and correction of frequency characteristics.
The LAPC technology is applied even to the control of sound characteristics to realise "Space Tune™" for correcting changes in frequency characteristics that occur in actual use due to installation conditions.

LAPC

LAPC is an original Technics speaker load adaptive technology. It measures the amp's frequency amplitude phase characteristics with speakers connected to the unit, and performs digital signal processing to achieve the ideal impulse response. Characteristic parameters optimised for the low-frequency and high-frequency speaker load characteristics of speakers are already pre-set in the LAPC computation circuit of the unit to realise ideal frequency and phase characteristics over the entire frequency range.

Space Tune™

Space Tune™ delivers optimised sound for the customer’s listening environment.

3 types of presets are available and choose one of them considering its placement.

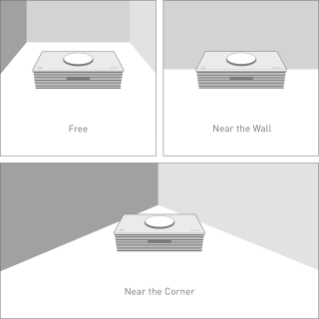

Concept of Space Tune Preset

- Measure room acoustic conditions by using microphone integrated in iOS devices.
- Tune DSP parameters to optimise acoustic performance.

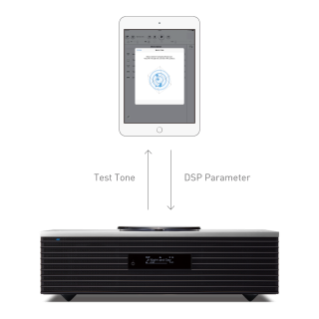

Concept of Space Tune Calibration

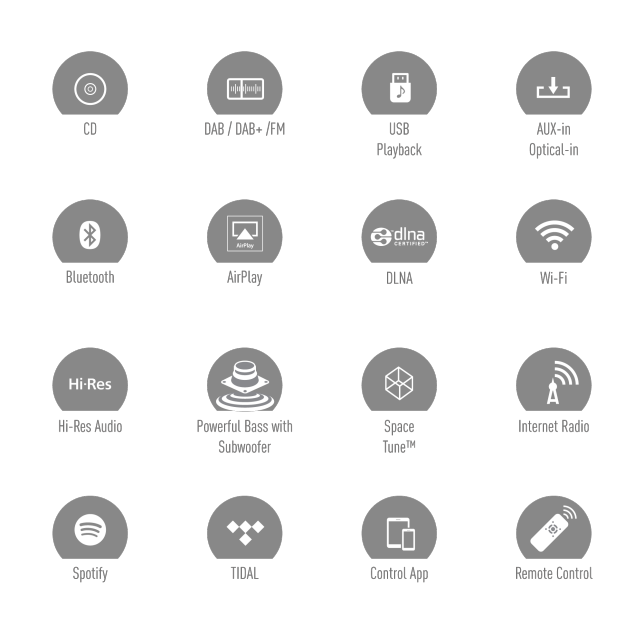

Supports a wide variety of music sources and high connectivity

Supports a wide variety of music sources and high connectivity

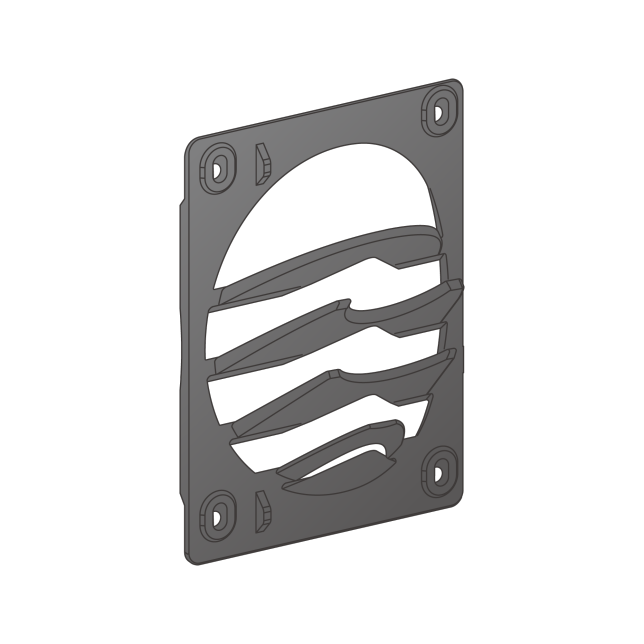

Acoustic Lens

Illustration of Acoustic Lens
The OTTAVA™ f is equipped with newly developed acoustic lenses featuring the “reverse dome-shape fin” structure. The rear of the fins are shaped to match the form of the soft-dome diaphragms of the tweeters, and positioned closely to the speaker units to provide long sound paths. This realises a wide directionality, expanded sound field and detailed high-frequency sound reproduction capability over the frequency range of 11 kHz to the high-res range. The fins are continuously connected to the Acoustic Louver on the front side to minimise disturbance to the high-frequency characteristics.

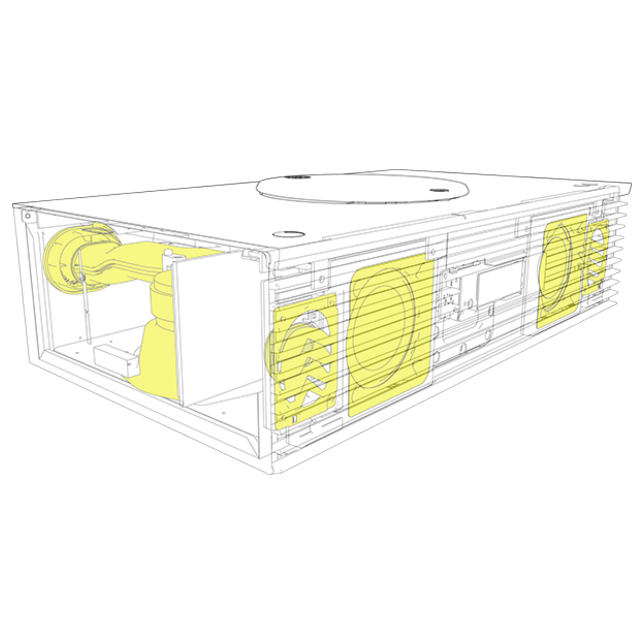

Speaker System

Photo of Speaker System
The speaker system consists of three types of newly developed speaker units. The high-res dome tweeters feature silk diaphragms that boast an excellent damping factor and smooth sound characteristics. The mid-range speaker units maintain an appropriate peak level and achieve seamless crossover. The woofers, which must reproduce the sound source faithfully even during high-power input, are provided with a large edge made of high-strength NBR (nitrile rubber) with a superb amplitude linearity as well as tough and flexible high-strength fiber dampers to powerfully support the large-motion voice coil bobbins. Coupled with the dual bass-reflex ports, these three types of speaker units reproduce sound over an ultra-wide frequency band in a range of 40 Hz to 50 kHz.

Get Inspired

Specs

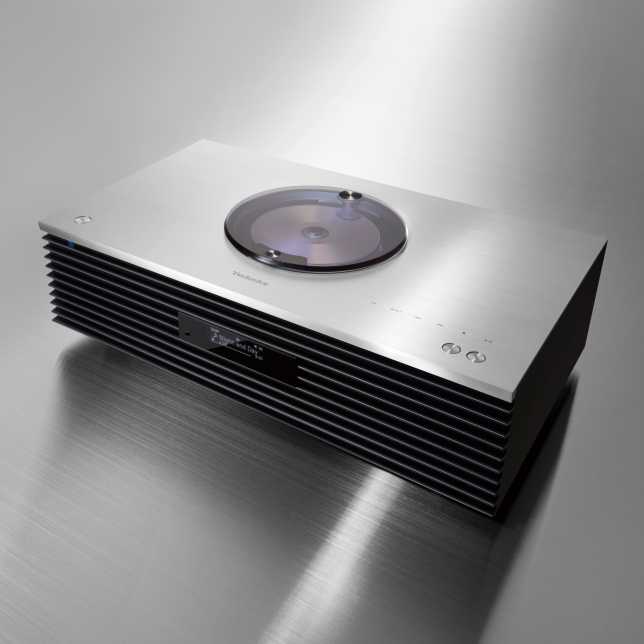

Photo of ALL-IN-ONE MUSIC SYSTEM SC-C70

Size and Weight

Height
143mm
Width
450mm
Depth
280mm
Weight
7.8kg

*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
"Direct Stream Digital", DSD and their logos are trademarks of Sony Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

JENO Engine (Jitter Elimination and Noise-shaping Optimization)

Load Adaptive Phase Calibration (w/o Calibration function)

Space Tune™

Acoustic Lens and Louver

Twin Power Supply Circuit System

CD High-Res Re-master

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimization)
    Load Adaptive Phase Calibration (w/o Calibration function)
    Space Tune

Noiseless Signal Technology

  • Twin Power Supply Circuit System
    Optimally Activated Circuit System
    CD High-Res Re-master

Emotive Acoustic Technology

  • Acoustic Lens and Louver
    Dual bass reflex port

Output Power

  • Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz LPF)
    Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF)

Speaker Unit

  • Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 / Subwoofer: 12 cm Cone Type

Analogue Input Terminal

  • AUX IN x1 (φ3.5mm)

Digital Input Terminal

  • Optical Digital x1, USB-A

Headphone Output

  • Yes (Ø3.5 mm)

Disc Compatibility

  • Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)

USB-A

  • iPod/iPhone/iPad

    • No
  • Support Codec

    • WAV
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz)
    • AIFF
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • AAC
      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MP3
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100 Base-TX/10 Base-T)

Wi-Fi

  • IEEE 802.11 b/g/n,
    2.4 GHz Band (1-13 Channel)

AirPlay

  • Yes

Bluetooth® (Support codec)

  • Yes (AAC, SBC)

TIDAL / Spotify

  • Yes* / Yes*

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 45 W

Dimensions (W x H x D)

  • 450 x 143 x 280 mm

Weight

  • Approx. 7.8 kg

Accessories

  • Remote Control, AC Cord, DAB indoor antenna, Owner's Manual, Batteries for Remote Control

Note

  • *Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
    *Registration/subscription may be required. Fees may apply.
