Sistema de tocadiscos Direct Drive SL-1200G


Grand Class


Coreless Direct Drive Motor

Concept of Coreless Direct Drive Motor
Conventional analogue turntables have problems with degradation in sound quality caused by factors such as minute speed vibration during rotation and rotation irregularity called "cogging." In the SL-1200G, the use of a newly developed coreless direct-drive motor with no iron core eliminates cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque and also reduces minute vibration during rotation. These factors enable reproduction of the warm, exquisitely detailed sound etched on analogue records.

High-precision Motor Control Technology

The application of motor control technology developed for Blu-ray devices and switching the drive mode depending on the operational status of the motor achieve a high-starting torque and high-speed stability.

Three-layered Turntable Platter

Concept of Three-layered Turntable Platter, Graph of Damping Characteristics
The turntable has a three-layered construction with a rigidly combined brass and aluminium die-cast platter. With a deadening rubber covering its entire rear surface to eliminate unnecessary resonance, thereby achieving high rigidity and vibration damping. This delivers smooth rotational stability and inertial mass surpassing the SP-10MK2, the direct-drive turntable standard used by broadcast stations worldwide, as well as having more than twice the inertial mass of the SL-1200MK5.

High-level Balance Adjustment

Photo of Balance Adjuster, Photo of
When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. Therefore, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading "BALANCED" to indicate that adjustment has been done.

High-sensitive Tonearm

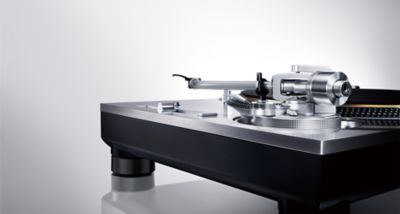

Photo of High-sensitive Tonearm, Photo of High-precision Bearings, Photo of Supplied auxiliary weights support a wide variety of cartridges
The tonearm employs lightweight magnesium which has a high damping effect, with cold drawing improving the characteristics of the material and achieving the high-precision required. In addition, high initial-motion sensitivity is attained by employing the traditional Technics gimbal suspension construction with horizontal rotation axis and the vertical rotation axis intersecting at a single central point, as well as high-precision bearings using a cut-processed housing.

Four-layered Cabinet Construction

Concept of Four-layered Cabinet Construction
A hairline-processed, 10-mm-thick top panel of immaculate aluminium has been added to the previous three-layered construction of aluminium die-cast, BMC, and heavyweight-class rubber on the SL-1200MK5. This four-layered construction combines high rigidity with a high-quality finish and feel.

High-quality Terminals

Photo of Brass-milled PHONO Output Terminals, Photo of AC Input Terminals (Detectable Input)
The use of brass-milled, gold-plated phono terminals and ground terminals prevent degradation in sound quality while enabling the easy attaching and detaching of cables. Also the use of metal shielding construction inside the case reduces the effects of external noise.

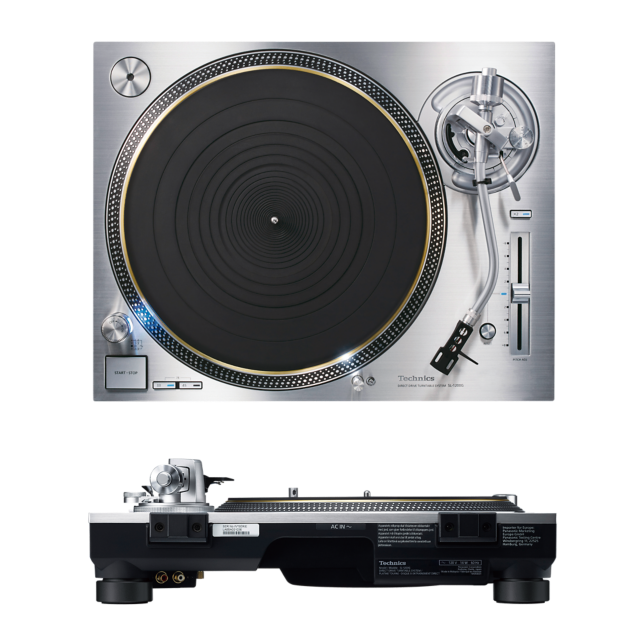

Foto de Sistema de tocadiscos Direct Drive SL-1200G

Tamaño y peso


Coreless Direct Drive Motor

High-precision Motor Control Technology

Three-layered Turntable Platter

High-level Balance Adjustment

High-sensitive Tonearm

Four-layered Cabinet Construction

Turntable section

  • Tipo

    • Sistema de accionamiento directo del plato giratorio (manual)
  • Velocidades del plato giratorio

    • 33-1/3, 45 y 78 r/min
  • Paso de gama variable

    • ±8 % y ±16 %
  • Por motor de arranque

    • 3,3 kg-cm
  • Características de establecimiento

    • 0,7 s. a partir de reposo a 33-1/3 rpm
  • Fluctuaciones y trémolo

    • 0,025% W.R.M.S. (JIS C5521)
  • Ruido de fondo

    • 78 dB (IEC 98A ponderado)
  • Plato giratorio

    • Latón y aluminio fundido a presión combinado
      Diámetro: 332 mm
      Peso: Aprox. 3,6 kg (incluyendo una lámina de goma)

Tonearm Section

  • Tipo

    • Tipo con contrapeso estático
  • Longitud efectiva

    • 230 mm
  • Parte saliente

    • 15 mm
  • Ángulo de error de seguimiento

    • Inferior a 2° 32' (en el surco exterior de un disco de 30 cm (12“))
      Inferior a 0° 32' (en el surco interior de un disco de 30 cm (12“))
  • Ángulo de descentramiento

    • 22°
  • Margen de ajuste de la altura del brazo

    • 0 - 6 mm
  • Margen de ajuste de presión de la aguja

    • 0 - 4 g (lectura directa)
  • Peso de la cápsula de la cabeza

    • Aprox. 7,6 g
  • Margen de peso de cartucho utilizable

    • (sin contrapeso auxiliar)
      5,6 - 12,0 g
      14,3 - 20,7 g (incluyendo cápsula)
      (con contrapeso auxiliar pequeño)
      10,0 - 16,4 g
      18,7 - 25,1 g (incluyendo cápsula)
      (con contrapeso auxiliar grande)
      14,3 - 19,8 g
      23,0 - 28,5 g (incluyendo cápsula)
  • Cartridge Mounting Dimension

    • JIS 12.7 mm Interval
  • Terminal de la cápsula de la cabeza

    • Clavija con terminal de 4 pines de 1,2 mm φ


  • Audio Output

    • Terminal de tierra x 1


  • Alimentación

    • 110 - 240 V CA, 50/60 Hz
  • Consumo

    • 14 W (Encendido) 0,2 W (Apagado)
  • Dimensiones (An. x Al. x Pr.)

    • 453 x 173 x 372 mm
  • Peso

    • Aprox. 18,0 kg
  • Accesorios

    • Plato giratorio, Almohadilla del plato giratorio, Tapa contra el polvo, Adaptador para discos EP, Contrapeso principal, Contrapeso auxiliar Pequeño, Contrapeso auxiliar Grande, Cápsula de la cabeza, Medidor de la parte saliente, Juego de tornillos para cartucho, Câbles PHONO, Cable de tierra PHONO, Cable de alimentación CA, Juego de tornillos para el plato giratorio
