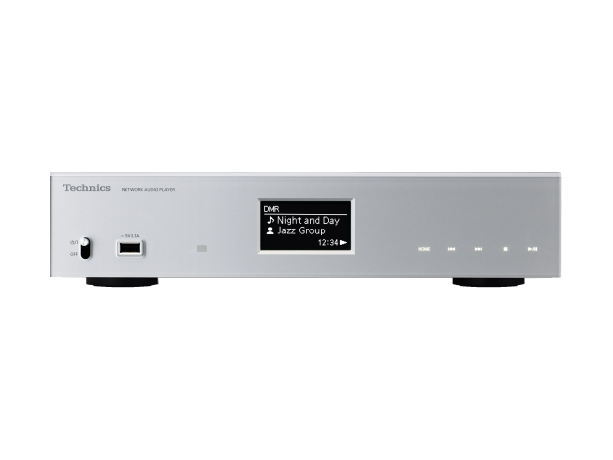

Netwerk-Audio Speler ST-C700D

Foto van Netwerk-Audio Speler ST-C700D

Storingsvrije signaaltechnologie

  • Digital Noise Isolation Architecture
    Virtuele Batterij Werking (Virtual Battery Operation)
    Ultra Low Distortion Oversampling Digital Filter
    High Res Re-master
    Optimally Activated Circuit System
    High Quality Analogue Circuit
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    Touch Switch Control
    Symmetric Structure

Frequentierespons

  • 2 Hz - 90 kHz (-3 dB)

Dynamic Range (IHF-A)

  • 112 dB

Signal to Noise Ratio (IHF-A)

  • 112 dB

THD+N

  • 0.0012 % (1 kHz, 0 dB)

Digitale ingang

  • USB-A, USB-B

USB-A

  • iPod/iPhone/iPad

    • Ja
  • Codec-ondersteuning

    • WAV

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD

      • Yes (2.8224 MHz, 5.6448 MHz)
    • AIFF

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • AAC

      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA

      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MP3

      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MQA

      • Ja

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB audioklasse 2.0, asynchrone modus
  • Codec-ondersteuning

    • DSC

      • Yes (2.8224 MHz, 5.6448 MHz)
    • PCM

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
    • MQA

      • Ja

DLNA

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8224 MHz, 5.6448 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MQA

    • Ja

Analoge uitgang

  • LINE x 1

Digital Output Terminal

  • Coaxial Digital x 1, Optical Digital x 1

Ethernet interface

  • LAN (100 Base-TX/10 Base-T)

System Port

  • System Control Input/Output (Φ3.5 mm Jack)

AirPlay

  • Ja

Bluetooth® (Support codec)

  • Yes (aptX® Low Latency, AAC, SBC)

TIDAL / Spotify

  • Ja* / Ja*
    *Compatible music streaming services will be supported sequentially through firmware updates.
    *Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
    *Registration/subscription may be required. Fees may apply.

NFC (Near Field Communication)

  • Ja

Tuner

  • DAB/DAB+/FM

Voeding

  • AC220-240 V, 50 Hz/60 Hz

Stroomverbruik

  • 26 W

Afmetingen (B x H x D)

  • 340 x 78 x 305 mm

Gewicht

  • Approx. 4.0 kg

Accessoires

  • Remote Control, AC Cord, Coaxial Digital Cable, Control Cable, Operating Instructions

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MQA

    • Yes
