Network / Super Audio CD Player SL-G700

The New SL-G700 Network / Super Audio CD Player. The SL-G700 is a multi-digital player that covers most of the digital audio media available today, from traditional CD/SACD to the latest high-res and many streaming services, and plays them all back in the highest possible quality.

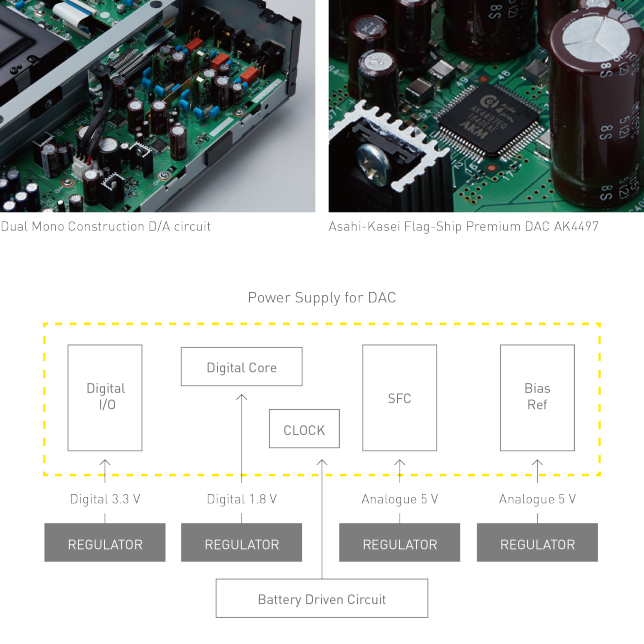

For analogue audio output, the D/A circuit is one of the most important circuit blocks since it recreates the original analogue waveform from a digital source, such as a CD. For the D/A converters, Asahi Kasei Micro devices’ top-of-the-line DAC AK4497, with their high S/N ratio and low distortion, are isolated for the left and right channels. The power supply for the D/A converters is separated into five sections according to the application, and supplied individually. The power supply for the clock employs an original Battery Driven Circuit System to achieve high-accuracy D/A conversion. The Dual Mono Construction and asymmetrical layout eliminate mutual interference between left and right channels, taking the reproduction of sound imaging and sound space recorded in the source to a higher dimension.

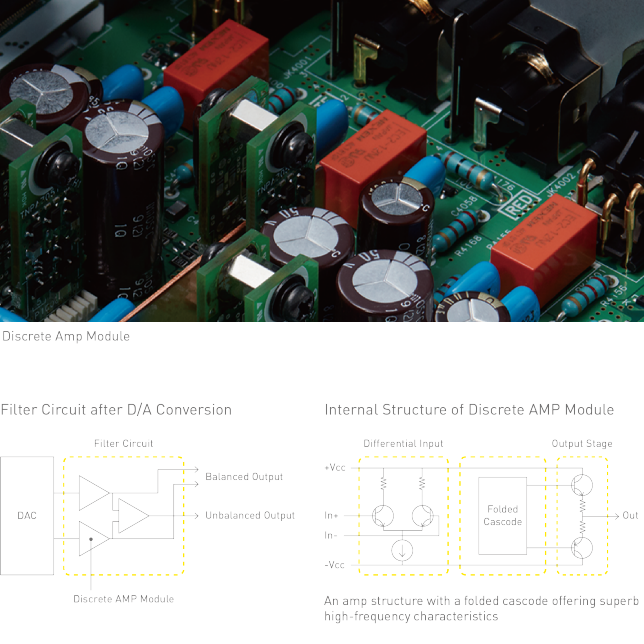

For analogue audio output, the filter circuit located after the D/A conversion determines the quality of sound. The SL-G700’s filter circuit incorporates not an Opamp IC but an amp module of original discrete construction. The use of low-noise transistors and thin-film resistors suppresses the noise generated inside the circuits. Detailed fine tuning, such as the increase of operating current, has improved the response, S/N ratio and distortion rate. As result, the SL-G700 provides highly linear and faithful sound reproduction without omitting even the smallest nuances recorded in the source.

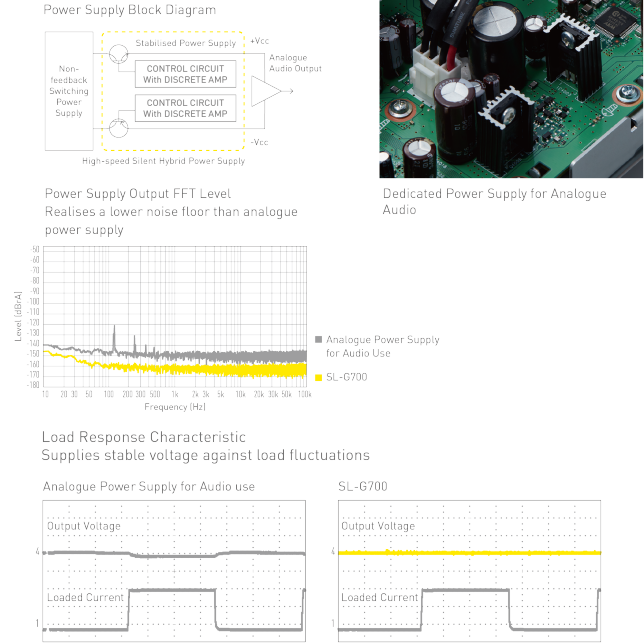

The quality of power supply is extremely important for high-fidelity sound reproduction. Power supply noise and supply stability directly affect the quality of sound reproduced from audio signals, particularly for analogue audio output. The SL-G700 is equipped with a dedicated power supply unit for analogue audio output. Its non-feedback switching power supply suppresses switching frequency fluctuation. Combined with the original stabilised power supply circuit, this dedicated power supply unit provides stable power with low noise. The discrete circuit structure does not use any general-purpose ICs, and meticulous tuning provides power optimised for analogue circuits, thus realising a high S/N ratio and superb reproduction, the hallmark of Technics sound.

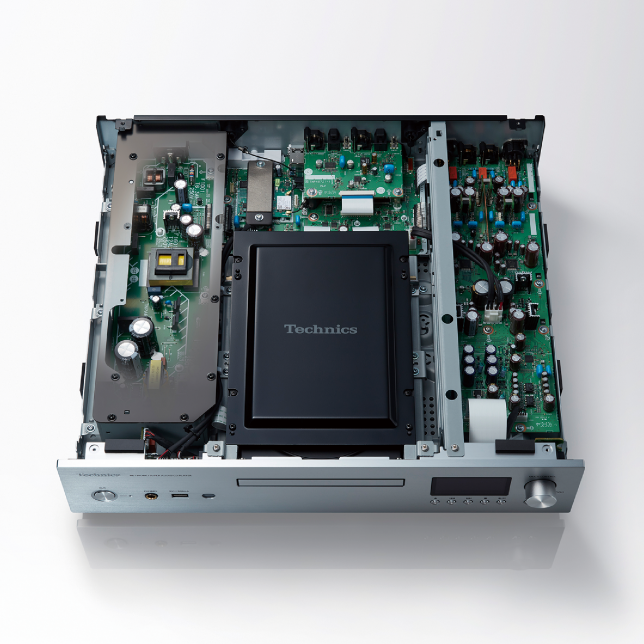

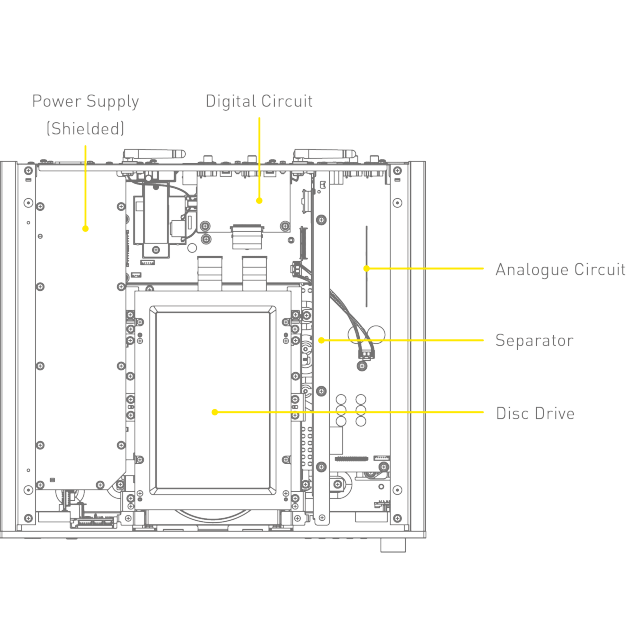

In Digital Audio Player, there are a variety of circuits, such as Switching Power Supply which has big energy and the Digital Interface Circuit which handling high frequency signal, and also analogue circuit. The SL-G700 uses a Four-Section construction with partitions installed between the circuit blocks according to the signal level handled and circuit type.This eliminates interference between circuit blocks, thus achieving clear sound quality. Also, the chassis rigidity due to this construction suppresses the vibration of electrical parts, thereby suppressing deterioration in sound quality.

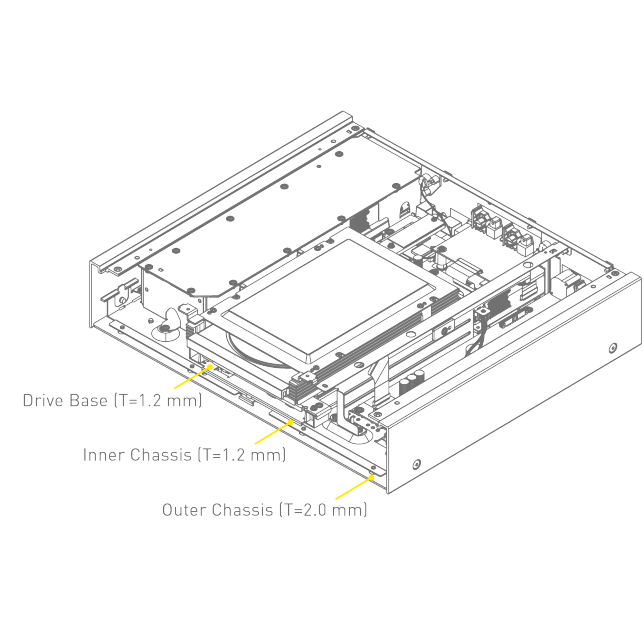

In the playback of a disc, the reading accuracy determines the sound quality. The CD drive mechanism features a triple chassis structure to ensure accurate reading and to prevent the vibration from transmitting to the outside of the mechanism. Moreover, the SL-G700 has a stable, aluminium die-cast disc tray with a high-vibration-damping, quiet structure to ensure high-accuracy disc playback.

The SL-G700 supports Bluetooth®, Wi-Fi, and AirPlay 2 with its high wireless connectivity. It is also compatible with streaming services, such as Spotify, TIDAL, and Internet Radio, and functions such as the Google Assistant.*
