Direct Drive DJ Turntable System

See product page

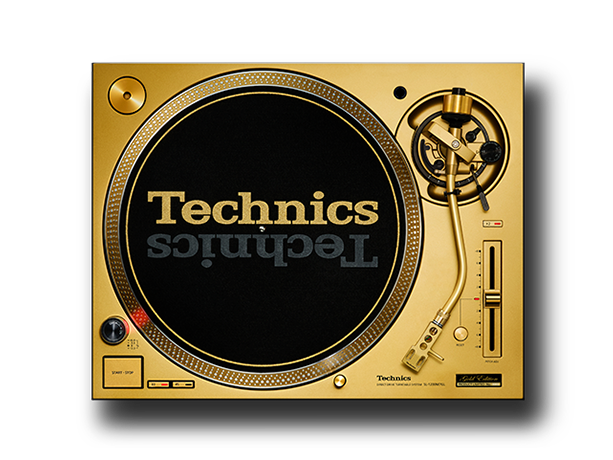

Photo of Direct Drive DJ Turntable System

Turntable Section

  • Drive Method

    • Direct Drive

  • Motor

    • Brushless DC motor

  • Turntable Speeds

    • 33 1/3, 45 rpm (with switch 78 rpm)

  • Adjust Range

    • ±8%, ±16%

  • Starting Torque

    • 0.18 N・m / 1.8 kg･cm

  • Build-up Characteristics

    • 0.7 s. from standstill to 33 1/3 rpm

  • Wow and Flutter

    • 0.025%　W.R.M.S.

  • Turntable Platter

    • Aluminum diecast
      Diameter：332mm
      Weight：Approx. 1.8kg (Including slipmat and slipsheet)

Tonearm Section

  • Type

    • Universal
      Static Balance

  • Effective Length (from the tonearm pivot to the stylus)

    • 230mm

  • Overhang

    • 15mm

  • Tracking Error Angle

    • Within 2° 32'　(at the outer groove of 30cm(12") record)
      Within 0° 32'　(at the inner groove of 30cm(12") record)

  • Offset Angle

    • 22°

  • Arm Height Adjustment Range

    • 0 - 6mm

  • Stylus Pressure Adjustment Range

    • 0 - 4g (Direct Reading)

  • Headshell weight

    • Approx. 7.6g

  • Applicable Cartridge Weight Range(including Headshell)

    • 5.6 - 12.0g
      14.3 - 20.7g (including headshell)

  • Cartridge Mounting Dimension

    • -

  • Head Shell Terminal Lug

    • 1.2mmφ 4-pin terminal lug

Bundled Cartridge

  • Model Name

    • -

Built-in Phono Equalizer

  • Gain

    • -

  • RIAA deviation

    • -

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1

General

  • Power Supply

    • AC110-240 V, 50 Hz / 60 Hz

  • Power Consumption

    • 8 W
      Approx. 0.2 W (Standby)

  • Dimensions (W x H x D)

    • 453 x 169 x 353 mm

  • Weight

    • Approx. 9.6 kg

  • Operating temperature range

    • 0℃ to +40℃ (32°F to +104°F)

  • Operating humidity range

    • 35% to 80% RH (no condensation)

  • Accessories

    • Turntable, Slipmat, Slipsheet,
      Dust cover,
      EP record adaptor, Balance weight,
      Head shell,
      Screw set for cartridge, PHONO cable,
      PHONO earth lead, AC power supply cord,
      Owner's Manual
