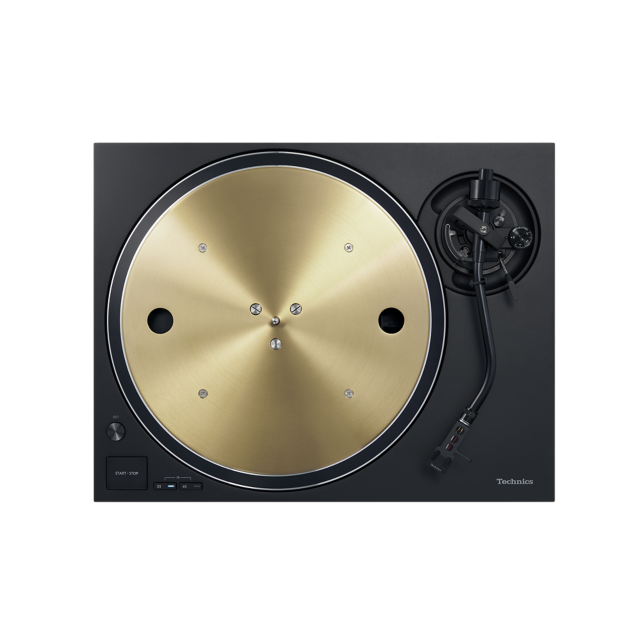

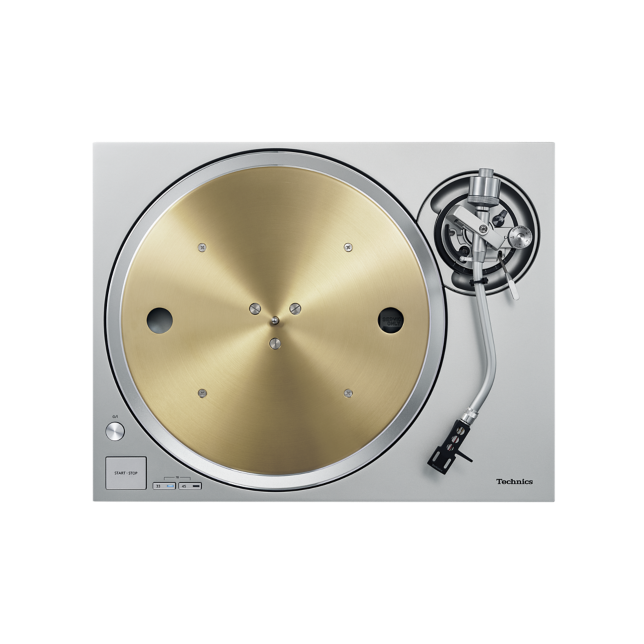

Patefono diskas su tiesiogine pavara SL-1300G

Nuotrauka Patefono diskas su tiesiogine pavara SL-1300G

Turntable Section

  • Drive Method

    • Direct Drive
  • Motor

    • Brushless DC motor
  • Turntable Speeds

    • 33-1/3, 45 and 78* rpm
      * The turntable speed will be 78.26 rpm when set to 78 rpm.
  • Starting Torque

    • 0.32 N・m (3.3kgf・cm)
  • Build-up Characteristics

    • 0.7 s. from standstill to 33- 1/3 rpm
  • Braking system

    • Electronic brake
  • Wow and Flutter

    • 0.025% W.R.M.S.
  • Turntable Platter

    • Brass and aluminium die-cast combined
      Diameter:332mm
      Weight:Approx. 3.6kg (Including a rubber sheet)

Tonearm Section

  • Type

    • Static Balance
  • Effective Length

    • 230mm
  • Overhang

    • 15mm
  • Tracking Error Angle

    • Within 2° 32' (at the outer groove of 30cm(12") record)
      Within 0° 32' (at the inner groove of 30cm(12") record)
  • Offset Angle

    • 22°
  • Arm Height Adjustment Range

    • 0 - 6mm
  • Stylus Pressure Adjustment Range

    • 0 - 4g (Direct Reading)
  • Headshell weight

    • Approx. 7.6g
  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0g
      14.3 - 20.7g (including head shell)
      (with small auxiliary weight)
      10.0 - 16.4g
      18.7 - 25.1g (including head shell)
      (with big auxiliary weight)
      14.3 - 19.8g
      23.0 - 28.5g (including head shell)
  • Cartridge Mounting Dimension

    • 12.7 mm (1/2") interval
  • Head Shell Terminal Lug

    • 1.2mmφ 4-pin terminal lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1

General

  • Power Supply

    • AC220-240 V, 50/60 Hz
  • Power Consumption

    • 10 W (Power ON)
      0.3 W (Power OFF)
  • Dimensions (W x H x D)

    • 453 x 173 x 372 mm
  • Weight

    • Approx. 13.0kg
  • Operating temperature range

    • 0℃ to +40℃
  • Operating humidity range

    • 35% to 80% RH (no condensation)
  • Accessories

    • Turntable, Turntable sheet, Dust cover,
      EP record adaptor, Balance weight,
      Auxiliary weight, Head shell, Overhang gauge,
      Screw set for cartridge, PHONO cable,
      PHONO earth lead, AC mains lead, Screw set for turntable,
      Owner's Manual
