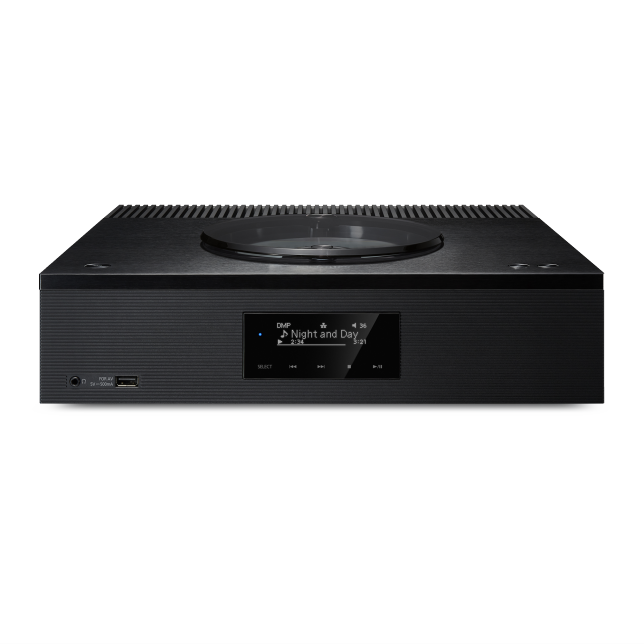

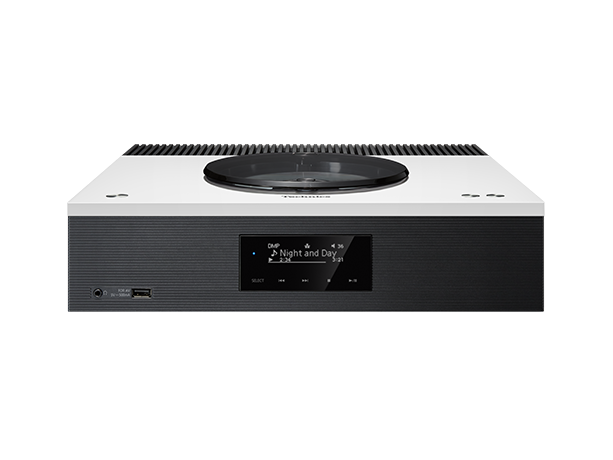

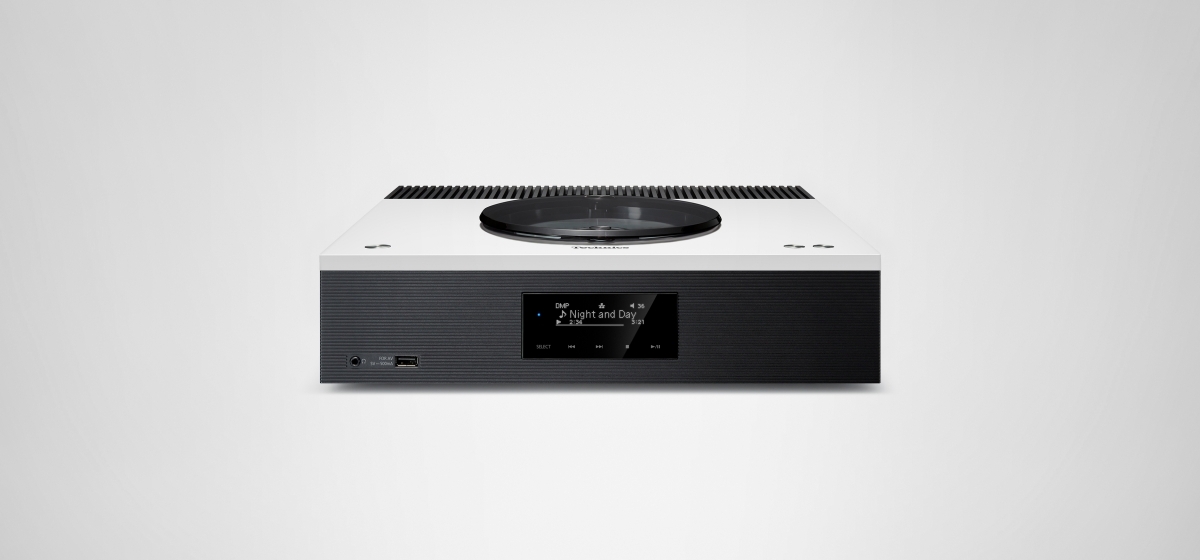

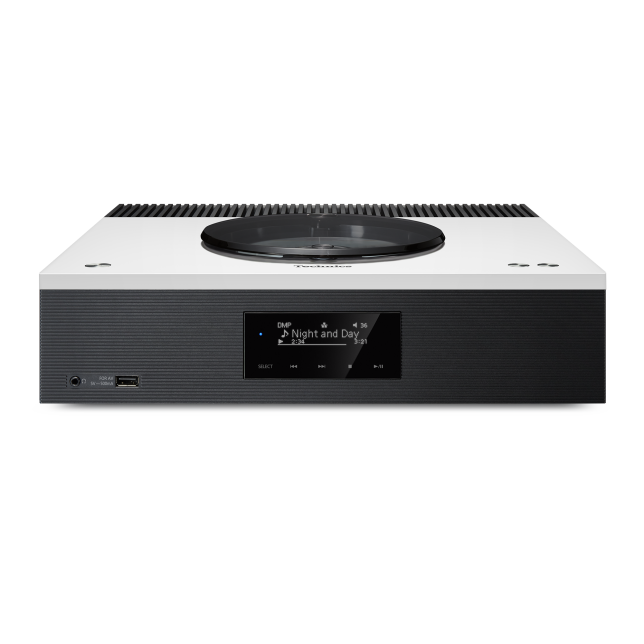

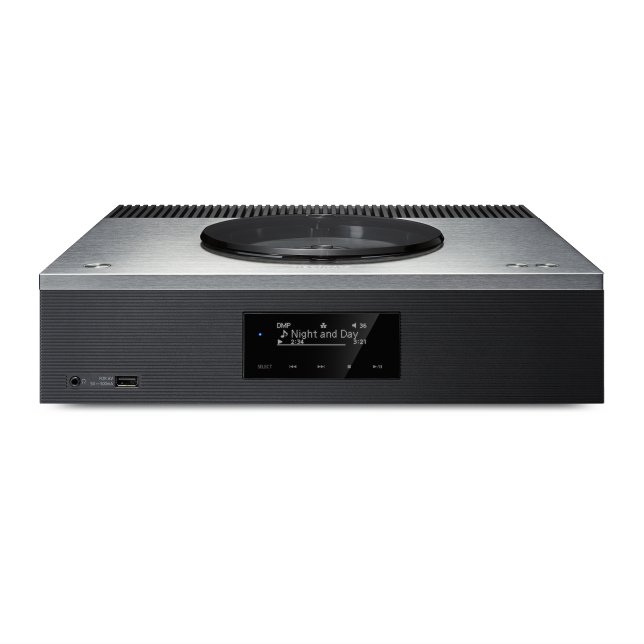

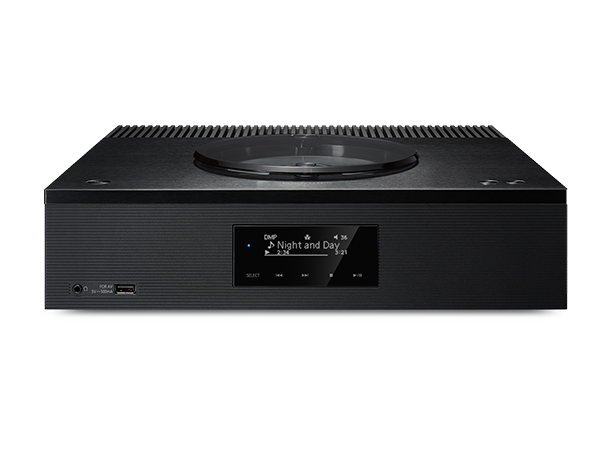

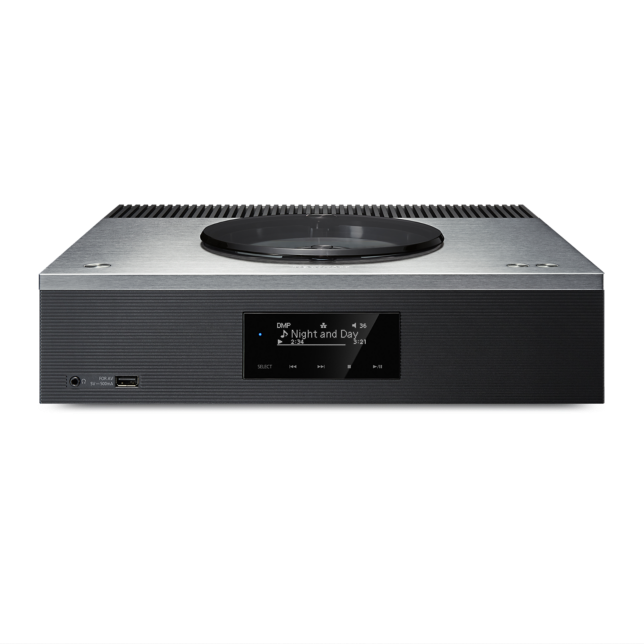

SA-C600
Premium Class Network CD Receiver
Features
Full Digital Amp, JENO Engine (Jitter Elimination and Noise-Shaping Optimisation)
Twin Power Supply Circuit System
Clean Powered Clock Generator
Built-in Phono Equaliser compatible with MM Cartridge
Space Tune™
The L/R Custom feature allows users to enter separate settings for each individual speaker, fine-tuning for different conditions and bringing out the best sound quality in any environment.
Supports a Wide Range of Music Content
Designed for a Sophisticated Listening Experience
Get Inspired
Specs
Size and Weight
- Height
- 94mm
- Width
- 340mm
- Depth
- 341mm
- Weight
- 4.8kg
*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Google and Chromecast are trademarks of Google LLC.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
“Direct Stream Digital”, DSD and their logos are trademarks of Sony Corporation.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.
JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
Twin Power Supply Circuit System
Clean Powered Clock Generator
Built-in Phono Equaliser compatible with MM Cartridge
Space Tune™

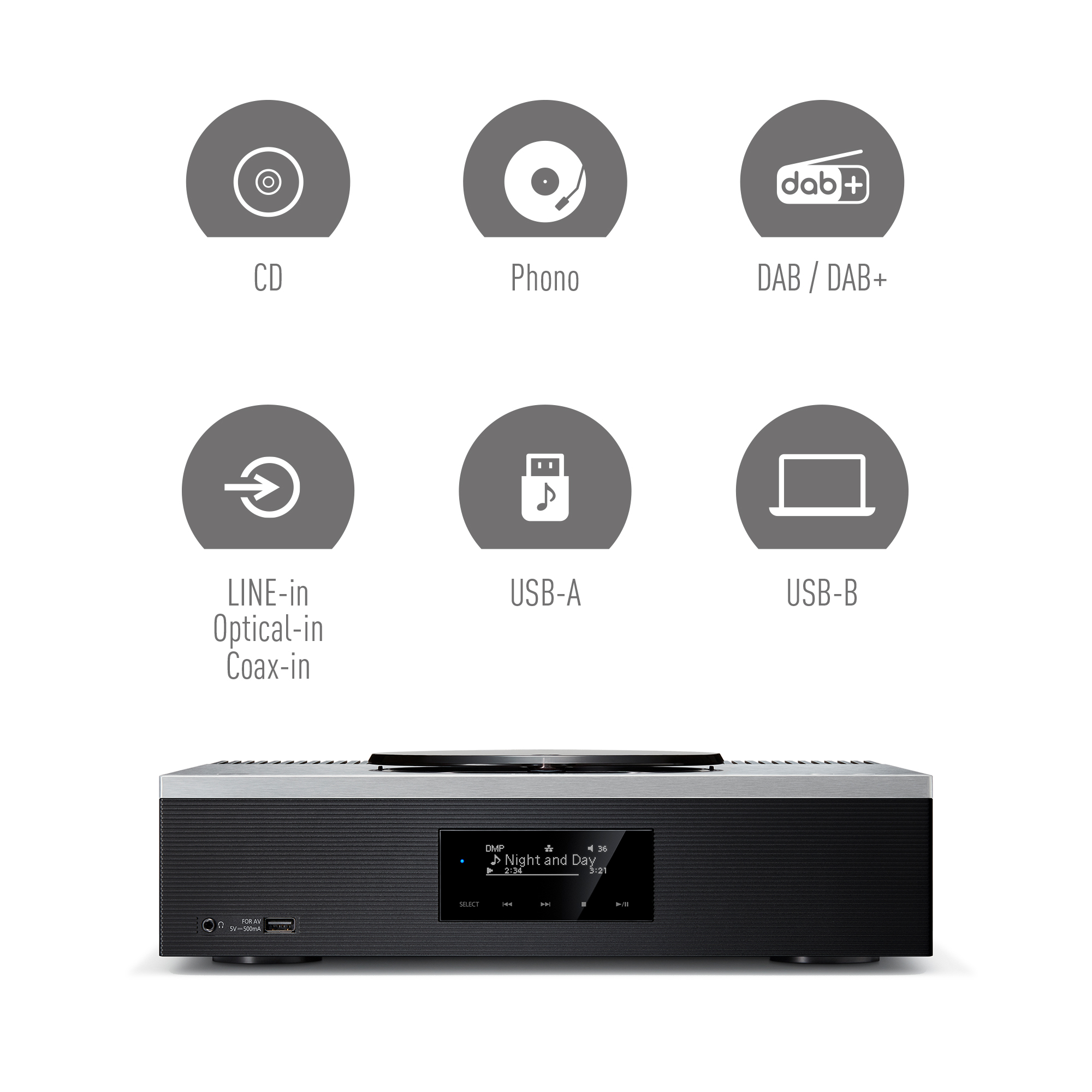

Supports a Wide Range of Music Content
Output Power
-
60 W + 60 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)
Load Impedance
-
4Ω-16Ω
Frequency Response
-
PHONO (MM)
-
20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
-
-
LINE
-
20Hz - 80kHz ( -3dB, 8Ω )
-
-
DIGITAL
-
20Hz - 90kHz ( -3dB, 8Ω )
-
Input Sensitivity / Input Impedance
-
PHONO (MM)
-
2.5 mV / 47 kΩ
-
-
LINE
-
200 mV / 22 kΩ
-
Analogue Input Terminal
-
LINE x 1
PHONO (MM) x1
Digital Input Terminal
-
Optical digital x1
Coaxial digital x1
USB-A x1
USB-B x1 (PC)
Analogue Output Terminal
-
Sub Woofer x1
Headphone Output
-
Yes, Stereo Φ3.5 mm
Disc Compatibility
-
Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)
USB-A
-
iPod/iPhone/iPad
-
No
-
-
Support Codec
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
ALAC
-
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
PC(USB-B)
-
USB Audio Class Specification
-
USB 2.0 high-speed
USB Audio Class 2.0, Asynchronous mode
-
-
Support Codec
-
LPCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
DSD Yes (2.8 MHz, 5.6 MHz)
-
-
DSD contol mode
-
ASIO Native mode, DoP mode
-
MQA Decorder
-
Yes
LAN(DMR)
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
ALAC
-
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
Ethernet Interface
-
LAN (100 Base-TX/10 Base-T)
Wi-Fi
-
IEEE 802.11 a/b/g/n/ac
2.4 GHz / 5 GHz Band
Google Cast™
-
Yes
AirPlay 2
-
Yes
Bluetooth® (Support codec)
-
Yes (AAC, SBC)
Tuner
-
DAB/DAB+/FM
Power Supply
-
AC 220 V - 240 V, 50/60 Hz
Power Consumption
-
46W
Dimensions (W x H x D)
-
340 mm × 94 mm × 341 mm
Weight
-
Approx. 4.8 kg
Accessories
-
AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual
