Nätverksspelare ST-C700D

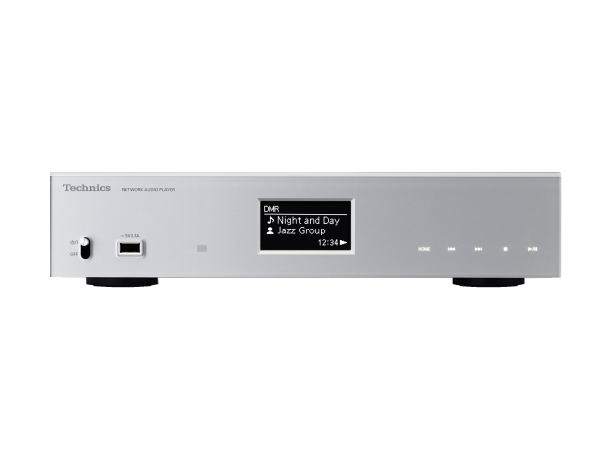

Foto av Nätverksspelare ST-C700D

Noiseless Signal Technology

  • Digital Noise Isolation Architecture
    Virtual Battery Operation
    Ultra Low Distortion Oversampling Digital Filter
    High Res Re-master
    Optimally Activated Circuit System
    High Quality Analogue Circuit
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    Touch Switch Control
    Symmetric Structure

Frequency Response

  • 2 Hz - 90 kHz (-3 dB)

Dynamic Range (IHF-A)

  • 112 dB

Signal to Noise Ratio (IHF-A)

  • 112 dB

THD+N

  • 0.0012 % (1 kHz, 0 dB)

Digital Input Terminal

  • USB-A, USB-B

USB-A

  • iPod/iPhone/iPad

    • Yes
  • Support Codec

    • WAV

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • FLAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • DSD

      • Yes (2.8 MHz, 5.6 MHz)
    • AIFF

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • ALAC

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
    • AAC

      • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
    • WMA

      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MP3

      • Yes (32, 44.1, 48 kHz / 16-320 kbps)
    • MQA

      • Yes

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB Audio Class 2.0, Asynchronous Mode
  • Support Codec

    • DSC

      • Yes (2.8 MHz, 5.6 MHz)
    • PCM

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
    • MQA

      • Yes

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MQA

    • Yes

Analogue Output Terminal

  • LINE x 1

Digital Output Terminal

  • Coaxial Digital x 1, Optical Digital x 1

Ethernet interface

  • LAN (100 Base-TX/10 Base-T)

System Port

  • System Control Input/Output (Φ3.5 mm Jack)

AirPlay

  • Yes

Bluetooth® (Support codec)

  • Yes (Qualcomm® aptX™ Low Latency, AAC, SBC)

TIDAL / Spotify

  • Yes* / Yes*
    *Compatible music streaming services will be supported sequentially through firmware updates.
    *Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside.
    *Registration/subscription may be required. Fees may apply.

NFC (Near Field Communication)

  • Yes

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC220-240 V, 50 Hz/60 Hz

Power Consumption

  • 26 W

Dimensions (W x H x D)

  • 340 x 78 x 305 mm

Weight

  • Approx. 4.0 kg

Accessories

  • Remote Control, AC Cord, Coaxial Digital Cable, Control Cable, Operating Instructions
