Direct Drive Turntable System SL-1200M7L

SL-1200M7L

Limited Edition DJ Turntables

Zoom In
Zoom Out
Close

Features

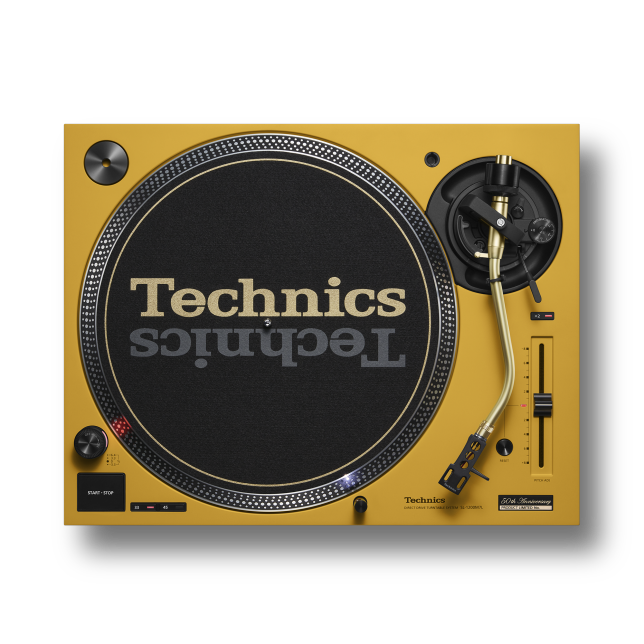

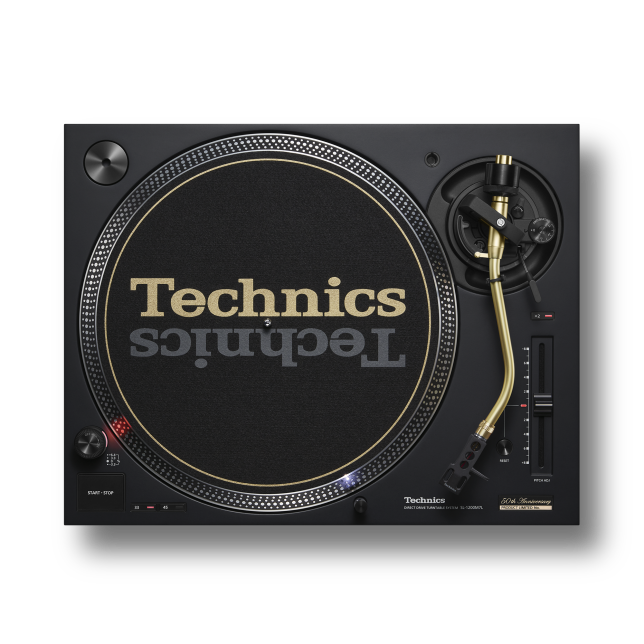

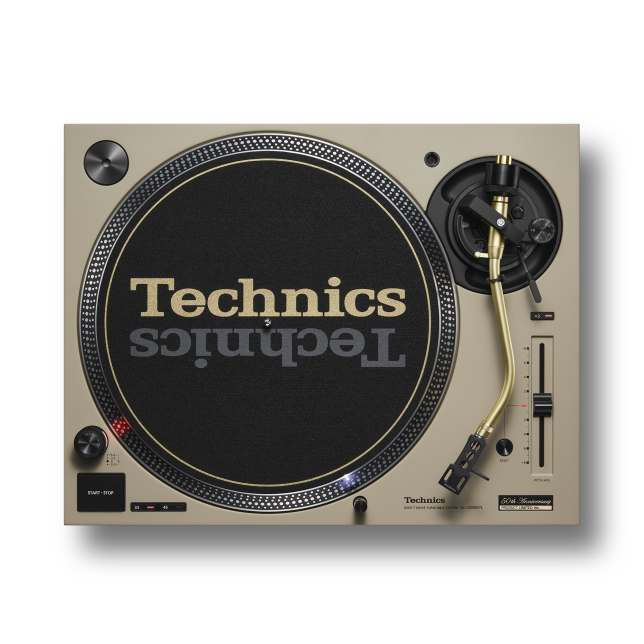

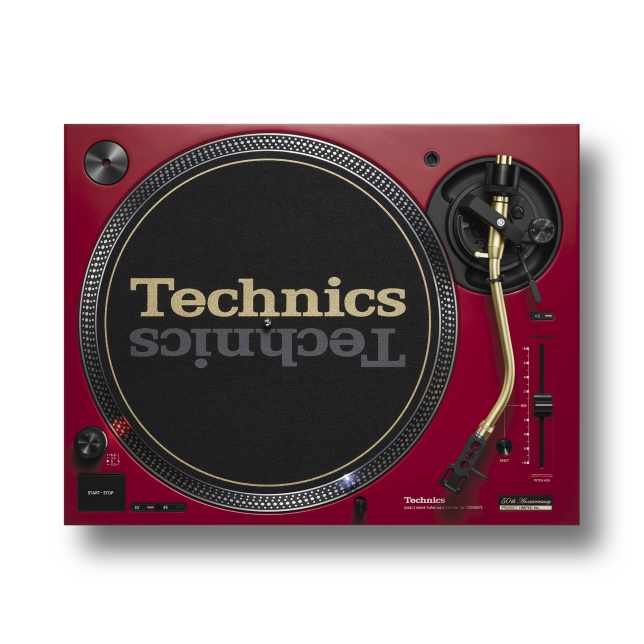

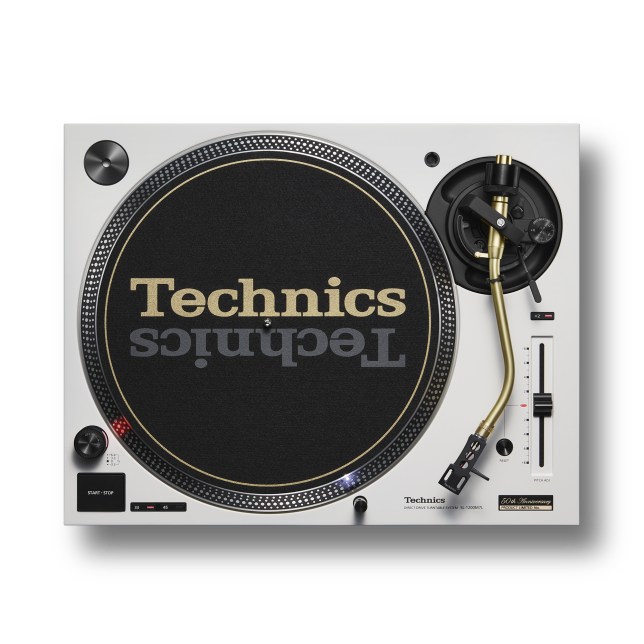

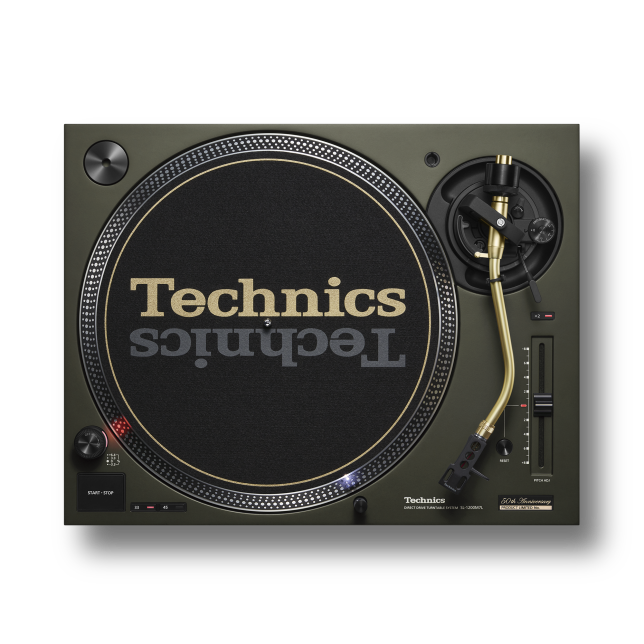

50 year Anniversary Limited Edition Colours

50 year Anniversary Limited Edition Colours
To mark the 50 years anniversary of the SL-1200 series, this limited edition model is available in seven colours, inspired by the street culture created by DJs. Each colour features a gold tonearm along with a special badge inscribed with serial number.

Limited Edition Accessories

Limited Edition Accessories
SL-1200M7L comes with a limited edition Technics sticker, a control vinyl sticker the same colour as the turntable itself, and a slipmat featuring a gold Technics logo.

Coreless Direct Drive Motor Achieving Stable Rotation

Coreless Direct Drive Motor Achieving Stable Rotation
The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. Firstly, it offers high performance through accurate rotation and powerful torque, it also does not require parts to be replaced. It also maintains high reliability over a long period of time. For the SL-1200M7L, a new coreless direct drive motor was developed - this motor employs a coreless stator. The removal of the core (iron core) from the stator, eliminates the root cause of cogging. Also the magnetic force of the rotor magnets was improved to the highest possible level, optimising the gap between the coreless stator and rotor magnets; thus achieving high-torque-performance equalling that of the SL-1200MK5. Enjoy the smooth rotation and power of the torque. That enables faithful sound reproduction from the groove of a record.

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment
Experience the newest digital motor control technology. This has been developed through Blu-ray disc and is applied to allow the torque and brake speed to be adjusted individually in four steps.

The Pitch Control Function
The pitch control function allows fine adjustment of the rotation speed within ±8% / ±16%. It does this through digital control, from positional detection of the slider to rotational control of the motor. This eliminates the unnecessary DA conversion and greatly improves tracking performance to achieve an accurate and stable pitch adjustment.

Reverse Play Function
The reverse play function, brings forth new possibilities of creative performance. Supporting speed rotation of 78 rpm, in addition to 33-1/3 rpm and 45 rpm rotation speed.
*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

High Sensitive Tonearm

High Sensitive Tonearm
The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1200M7L. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Stylus Illuminator Featuring a High-brightness and Long-life White LED

Stylus Illuminator Featuring a High-brightness and Long-life White LED
The stylus illuminator features a new push-type structure for intuitive operation, and employs a highbrightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

High-rigidity Cabinet and High-damping Insulator

High-rigidity Cabinet and High-damping Insulator
The chassis, an essential part for reducing external vibrations, inherits the audio quality enhancement technology fostered through the development of high-end turntables. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fibre to achieve a two-layer construction. The combination of this special high-rigidity material and a metal chassis raised the rigidity and vibration-damping performance to higher levels, realising a robust cabinet for beautiful sound reproduction. The insulator is comprised of spring and rubber to provide optimal frequency characteristics. This not only assures high sound quality and superb howling resistance, but also effectively shuts out external vibrations under high sound level conditions.

Get Inspired

Specs

Size and Weight

Height
169mm
Width
453mm
Depth
353mm
Weight
9.6kg

*Approx.

50 Year Anniversary Limited Edition Designs and Accessories

Coreless Direct Drive Motor Achieving Stable Rotation

Diverse New Functions Adapt to Various Playing Styles

High Sensitive Tonearm

Stylus Illuminator Featuring a High-brightness and Long-life White LED

High-rigidity Cabinet and High-damping Insulator

Turntable section

  • Type

    • Direct Drive Manual Turntable
  • Turntable Speeds

    • 33-1/3, 45 rpm (with switch 78 rpm)
  • Starting Torque

    • 0.18 N・m / 1.8 kg・cm
  • Build-up Characteristics

    • 0.7 s. from standstill to 33 1/3 rpm
  • Wow And Flutter

    • 0.025 % W.R.M.S.
  • Turntable Platter

    • Aluminium diecast
      Diameter : 332 mm
      Weight : Approx. 1.8 kg (Including slipmat and slipsheet)

Tonearm Section

  • Type

    • Universal Static Balance
  • Effective Length

    • 230 mm
  • Overhang

    • 15 mm
  • Tracking Error Angle

    • Within 2° 32' (at the outer groove of 30cm (12") record)
      Within 0° 32' (at the inner groove of 30cm (12") record)
  • Offset Angle

    • 22°
  • Arm-height Adjustment Range

    • 0 - 6 mm
  • Stylus Pressure Adjustment Range

    • 0 - 4 g (Direct Reading)
  • Head Shell Weight

    • Approx. 7.6 g
  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0 g
      14.3 - 20.7 g (including head shell)
  • Head Shell Terminal Lug

    • 1.2 mmφ 4-pin terminal lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1

General

  • Power Supply

    • AC 110 - 240 V, 50 / 60 Hz
  • Power Consumption

    • 8 W
      Approx. 0.2 W (Standby)
  • Dimensions (W x H x D)

    • 453 x 169 x 353 mm
  • Weight

    • Approx. 9.6 kg
  • Accessories

    • Turntable, Slipmat, Slipsheet, Dust cover, Technics sticker for limited edition, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Control vinyl stickers, Owner's Manual
