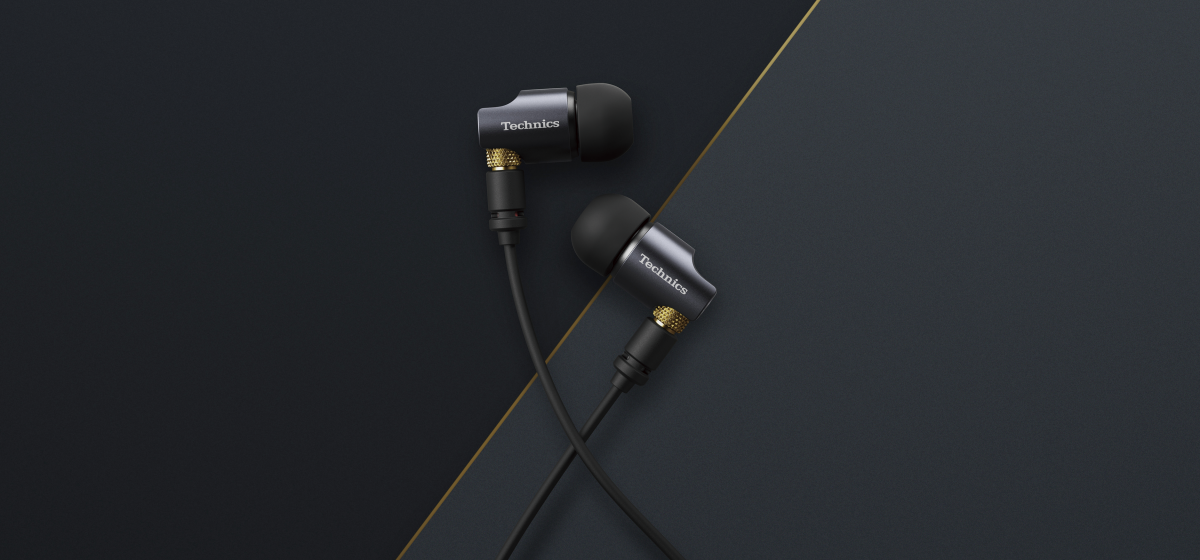

Premium Stereo Earphones EAH-TZ700

EAH-TZ700

Headphones

Features

A newly developed free-edge driver featuring an original diaphragm and magnetic fluid technology

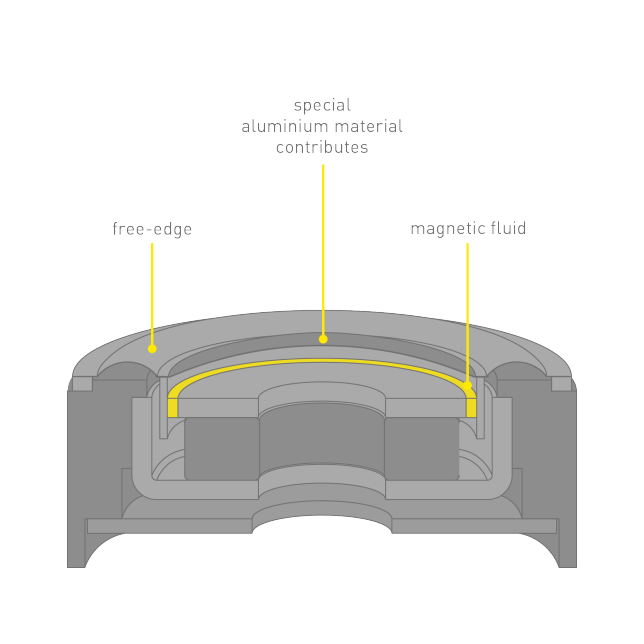

Graphic of newly developed driver
The newly developed 10-mm driver uses a 5-micron-thick diaphragm made of a combination of a high-strength, special aluminium material that suppresses unwanted vibration and a supple free-edge material. The special aluminium material contributes to improved high-frequency sound reproduction, while the free-edge material lowers the lowest resonance frequency to achieve outstanding low-frequency sound reproduction. Furthermore, magnetic fluid is used in the voice coil section to maximise its characteristics to ensure high stroke accuracy of the supple-edge diaphragm and to provide a high damping effect, which were previously difficult to achieve. The result is the reproduction of sound over a wide frequency range with ultra-low distortion.

Super-wide and flat sound tuning (Air Control Precision Structure)

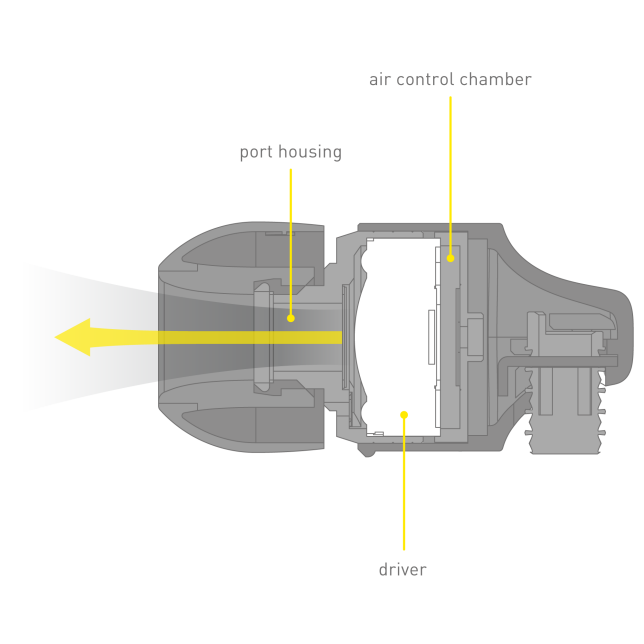

Graphic of TZ700 contruction
The coaxial design cylinder-type housing of the EAH-TZ700 maximises the potential of the driver. The proprietary Air Control Chamber inside the unit precisely controls the internal airflow and optimises the balance among frequency bandwidths. As a result, sound resolution improves and stunning sound space is created.

A housing design featuring different metal materials

Image of TZ700
The original housing construction features a combination of different metal materials for the purpose of improving both sound quality and strength. The port housing section where sound exits is made of lightweight high-strength titanium, which is a material used in aircraft and Precision Motion Driver. It holds the driver rigidly and suppresses unwanted vibration. The main housing body is made of magnesium diecast that boasts excellent vibration damping characteristics. The 3D shape ensures the most suitable angle of insertion in the ear and provides an optimal fit to realise exceptional comfort when worn.

Dedicated cables and ear pieces designed in pursuit of ideal audio quality

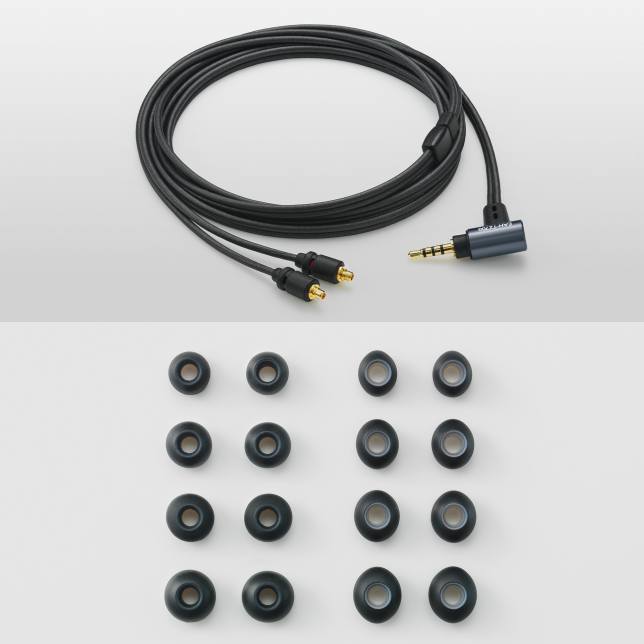

Images of cables and ear pieces
The EAH-TZ700 comes with two types of cables: balanced and unbalanced. The user can choose the one to suit his/her preference or connection environment. The general-purpose MMCX connector used for the connection to the main unit provides extra recabling versatility. The ear pieces are important parts that also affect the sound quality. In addition to the normal type and round type, oval-shape ear pieces with excellent sound insulation are provided. What’s more, each ear piece type comes in four different sizes. So, every user can enjoy a high-quality music experience with optimal comfort.

Design achieving both quality and functionality

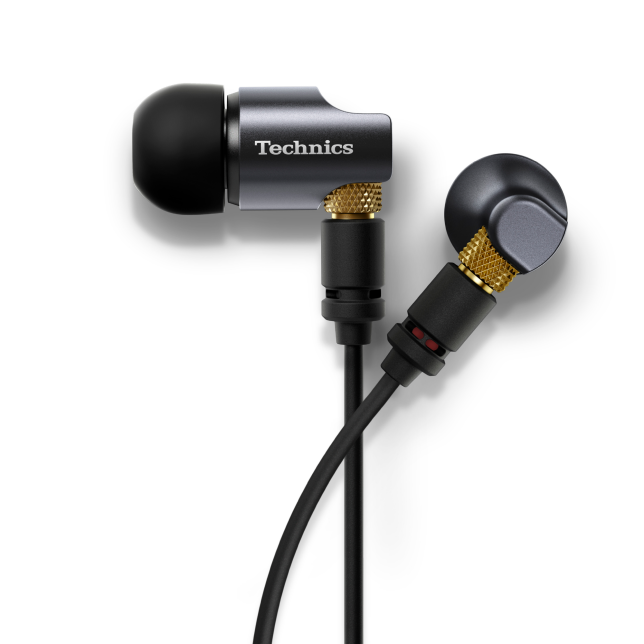

Image of TZ700
The EAH-TZ700’s compact magnesium housing features a graphite black finish, which is a Technics hallmark. The MMCX connector terminal on the main unit is knurled and gold-plated. Technics designs every part without any compromise in quality, as if creating high-quality jewelry.

Specs

Photo of Premium Stereo Earphones EAH-TZ700

Size and Weight

Weight
7g

*Approx. without cord

A newly developed free-edge driver featuring an original diaphragm and magnetic fluid technology

Super-wide and flat sound tuning (Air Control Precision Structure)

A housing design featuring different metal materials

Dedicated cables and ear pieces designed in pursuit of ideal audio quality

Design achieving both quality and functionality

Technics Sound Technology

  • Precision Motion Driver
    Air Control Precision Structure

Driver Unit

  • 10 mm (3/8 in)

Impedance

  • 37Ω

Sensitivity

  • 102 db / mW

Power Handling (IEC)

  • 100 mW (IEC)

Frequency Information - Frequency Response (with cord)

  • 3 Hz - 100k Hz

Weight

  • Approx. 7 g (0.25 oz) (without cord)
    Approx. 22 g (0.78 oz) (with cord)

Supplied Accessory

  • Earpices Set(Nomal Type, Oval Type; Size: S/M/L/XL),
    Detachable Cord: Approx. 1.2 m (3.9ft),
    Detachable Balance Cord: Approx. 1.2 m (3.9ft),
    Carrying case

Plug

  • (3.5 mm) Stereo Mini Plug

Cord - Cord Length

  • 1.2 m detachable (3.9ft)
