Direct Drive Turntable System SL-1200GR

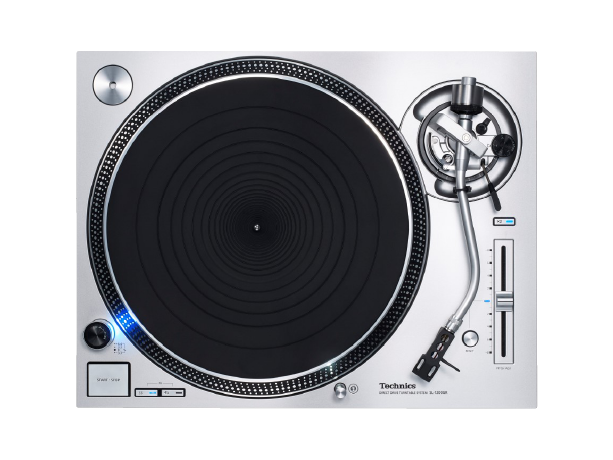

Photo of Direct Drive Turntable System SL-1200GR

Turntable section

  • Type

    • Direct Drive Manual Turntable
  • Turntable Speeds

    • 33-1/3, 45 and 78 r/min
  • Adjust Range

    • ±8 %, ±16 %
  • Starting Torque

    • 2.2 kg-cm
  • Build-up Characteristics

    • 0.7 s. from Standstill to 33-1/3 r/min
  • Wow And Flutter

    • 0.025 % W.R.M.S.
  • Rumble

    • 78 dB (IEC 98A weighted)
  • Turntable Platter

    • Aluminium diecast
      Diameter : 332 mm
      Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)

Tonearm Section

  • Type

    • Universal Static Balance
  • Effective Length

    • 230 mm (9-1/16")
  • Overhang

    • 15 mm (19/32")
  • Tracking Error Angle

    • Within 2° 32' (at the outer groove of 30 cm record)
      Within 0° 32' (at the inner groove of 30 cm record)
  • Offset Angle

    • 22°
  • Arm-height Adjustment Range

    • 0 - 6 mm
  • Stylus Pressure Adjustment Range

    • 0 - 4 g (Direct Reading)
  • Head Shell Weight

    • Approx. 7.6 g
  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0 g
      14.3 - 20.7 g (including head shell)
      (with auxiliary weight)
      10.0 - 16.4 g
      18.7 - 25.1 g (including head shell)
  • Cartridge Mounting Dimension

    • JIS 12.7 mm (1/2") interval
  • Head Shell Terminal Lug

    • 1.2 mmφ 4-pin terminal lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

  • Power Supply

    • AC 110-240 V, 60 Hz
  • Power Consumption

    • 11 W
      Approx. 0.2 W (Standby)
  • Dimensions (W x H x D)

    • 453 x 173 x 372 mm
      (17-27/32 × 6-13/16 × 14-21/32 inch)
  • Weight

    • Approx. 11.5 kg
      (Approx. 25.35lbs)
  • Accessories

    • Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
