Advanced Phase Precision Driver
To realise the point sound source reproduction, the coaxial configuration was adopted and then it was combined with the originally shaped Linear Phase Plug for aligning phases and the Smooth Flow Diaphragm formed with a shallow-shape diaphragm and smooth edge shape for minimum sound reflection.
The SB-G90M2’s 2-way coaxial speaker unit was newly developed for the reproduction of the mid- to high-frequency range in order to realise the clear sound image localisation and high sound quality to deliver smooth, emotion-rich music, while inheriting the concepts of point sound source and linear phase that Technics pursues relentlessly.
Linear Phase Plug
The tip of the Linear Phase Plug is made from a high-modulus, high-density brass material. It prevents the plug from vibrating unnecessarily due to the effect of the vibration of the mid-range unit, thus delivering clear and low-distortion sound.
Smooth Flow Diaphragm
The diaphragm of the mid-range unit, which is part of the coaxial speaker unit, has a shallow shape with a smooth edge to reduce sound reflections so that the disturbance to the sounds radiated from the diaphragm is minimised, resulting in excellent frequency response, phase characteristic and wide directivity.
This configuration achieves a wide sound stage and smooth and rich mid- to high-frequency range.

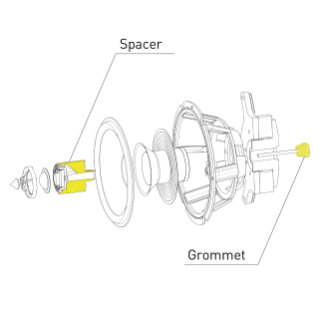

To that end, the balanced driver mounting architecture adopted by the previous SB-G90 model was further optimised through the extensive CAE analysis and the speaker mount baffle was newly developed for the secure mounting of the speaker units. In addition, the rigidity of the entire cabinet was strengthened to take advantage of the balanced driver mounting architecture. The strength and shape of each and every one of the parts composing the coaxial speaker was reviewed painstakingly in order to remove unwanted vibrations and noise as completely as possible. What’s more, a sound path structure is provided inside the cabinet. This new and unique structure effectively eliminate standing waves that cause a resonance peak.
Balanced Driver Mounting Architecture
Together, they further enhance the crispness of sound and three dimensional presentation of sound field.
Standing Wave Termination Structure
As a countermeasure, a sound path structure is provided at the bottom of the woofer cabinet to guide the standing waves. As a countermeasure, a sound path structure is provided at the bottom of the woofer cabinet to guide the standing waves. Sound absorbing material is installed at the location in the sound path where the speed of sound becomes fastest. This enables the efficient removal of standing waves, which are the cause of resonance peaks, with a minimum amount of sound absorbing material. (Patented)
This structure allows the use of all information necessary for accurately reproducing music so the speaker system realises more vivid and natural medium- and low-frequency sound.
Size and Weight
Advanced Phase Precision Driver with Linear Phase Plug
Smooth Flow Diaphragm
Silent Construction with Balanced Driver Mounting Architecture
High-rigidity Cabinet and Standing Wave Termination Structure
Low-distortion and Long-stroke 16cm Woofer
Bi-Wiring Speaker Terminal
3-way 4-speaker Bass Reflex (coaxial 2-way midrange/built-in tweeters)
16 cm (6½") Cone type x 2
Midrange / Tweeter
16 cm (6½") Cone type x 1 / 2.5 cm (1") Dome type x 1
Input Power (IEC)
100 W (Rated), 200 W (Max)
Recommended Amp Power
40 - 200 W (Speaker tested by IEC60268-5 Short Term Max Test)
Sound Pressure Level
86 dB / 2.83 V (m)
83 dB / W(m)
33Hz - 90kHz (-10dB)
Dimensions (W x H x D)
11-1/2 x 43-27/32 x 14-2/5 inch (including spikes)
Weight (per unit)
Approx. 78 lbs
Spike x 4, Spike shoe x 4, Spacer x 4, Base plate x 4, Base plate screw x 12, Rubber foot x 4, Short wieres x 2, Speaker net x 1, Cleaning cloth x 1, Owner's Manual x 1,
