Music Server ST-G30

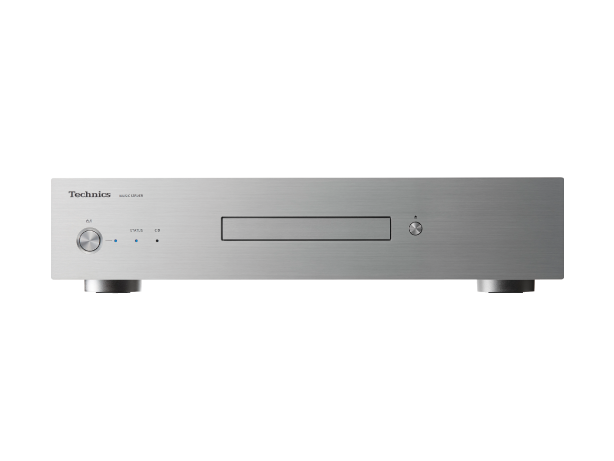

Photo of Music Server ST-G30

Noiseless Signal Technology

  • Low Noise USB Transfer
    Silent SSD
    Digital Noise Isolation Architecture
    Optimally Activated Circuit System
    Bit-Perfect Ripping
    Rigidly-Mounted Sheltered Drive
    High Rigidity Metal Double Chassis

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    Symmetric Structure

Storage

  • Capacity

    • G30

      • SSD 512 GB Built-in
    • G30L

      • -
  • Form Factor

    • 2.5 inch
  • Interface

    • Serial ATA 6Gbps

Supported Disc / Supported Format

  • CD, CD-R, CD-RW (8 cm, 12 cm) / CD-DA

USB-Audio Output

  • USB Audio Class Specification

    • USB Audio Class 2.0, Asynchronous Mode
  • Support Codec

    • DSD

      • Yes (2.8224 MHz, 5.6448 MHz, 11.2896 MHz)
    • PCM

      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

DLNA Support Codec

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8224 MHz, 5.6448 MHz, 11.2896 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • ALAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
  • WMA

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

USB Import / Backup

  • USB 3.0 SuperSpeed
    DC 5 V Max 900 mA
    USB Mass Storage Class
    Format: FAT12, FAT16, FAT32, NTFS

Media Server

  • DiXiM Media Server

Ethernet Interface

  • LAN (1000 Base-T / 100 Base-TX / 10 Base-T)

Power Supply

  • AC120 V, 60 Hz

Power Consumption

  • 28 W

Dimensions (W x H x D)

  • 430 x 98 x 391 mm
    16-15 / 16 x 3-7 / 8 x 15-13 / 32 inch

Weight

  • G30

    • Approx. 11.0 kg / Approx. 24.3 lbs
  • G30L

    • Approx. 10.9 kg / Approx. 24.0 lbs

Accessories

  • AC Cord, Owner's Manual
