Integrerad stereoförstärkare SU-G700

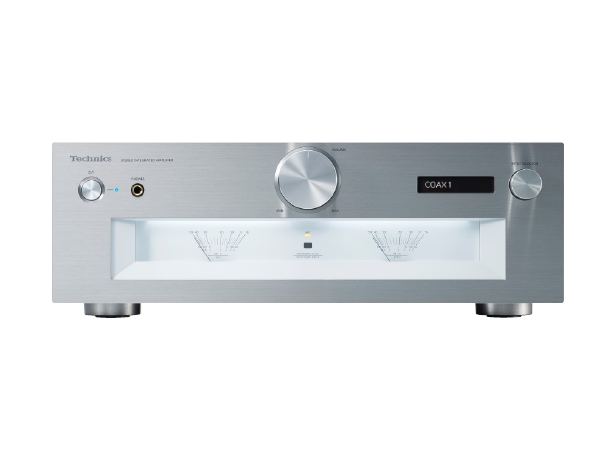

Foto av Integrerad stereoförstärkare SU-G700

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
    LAPC (Load Adaptive Phase Calibration)
    High-speed Silent Hybrid Power Supply
    Battery Driven Clock Generator
    High-rigidity Metal Double Chassis

Noiseless Signal Technology

  • Digital Noise Isolation Architecture
    Optimally Activated Circuit System

Technics Definitive Design

  • High-rigidity Cabinet
    Three-section Configuration

FTC Output Power

  • 70 W + 70 W (1 kHz, T.H.D. 0.5 %, 8 Ω, 20 kHz LPF)
    140 W + 140 W (1 kHz, T.H.D. 0.5 %, 4 Ω, 20 kHz LPF)

Input Sensitivity / Input Impedance

  • LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 Kω

Frequency Response

  • LINE 5 Hz - 80 kHz (-3 dB, 8 Ω),
    PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
    DIGITAL 5 Hz - 90 kHz (-3 dB, 8 Ω)

Load Impedance

  • 4 - 16 Ω

Analogue Input Terminal

  • LINE x 2 (LINE1 IN, LINE2 IN / MAIN IN) , PHONO (MM) x 1

Digital Input Terminal

  • Coaxial Digital x 2, Optical Digital x 2, USB-B (PC)

Analogue Output Terminal

  • PRE OUT x 1, LINE OUT x 1 (ANALOGUE SOURCE ONLY)

Headphone Output

  • Yes

USB-DAC (USB-B)

  • USB Audio Class 2.0, Asynchronous Mode

Support Codec

  • DSD

    • Yes (2.8224 MHz, 5.6448 MHz, 11.2896 MHz)
  • PCM

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

Power Supply

  • AC220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 85 W

Dimensions (W x H x D)

  • 430 x 148 x 428 mm

Weight

  • Approx. 12.3 kg

Accessories

  • Remote Control, AC Cord, Owner's Manual
