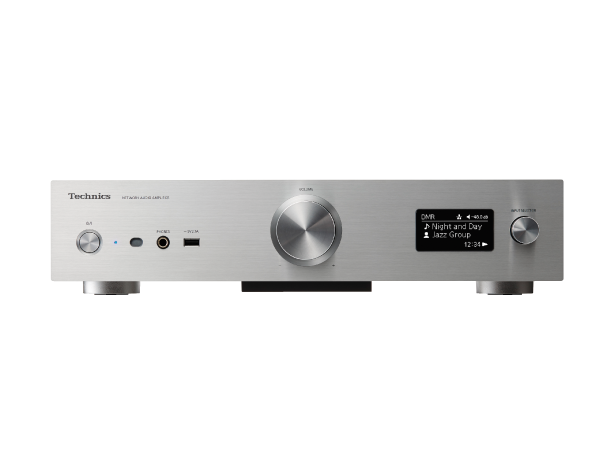

Network Audio Amplifier SU-G30

Foto av Network Audio Amplifier SU-G30

Accurate Digital Technology

  • JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
    GaN-FET Driver
    LAPC (Load Adaptive Phase Calibration)
    High-speed Silent Hybrid Power Supply
    Battery Driven Clock Generator
    High Rigidity Metal Double Chassis

Noiseless Signal Technology

  • Digital Noise Isolation Architecture
    Ultra Low Distortion Oversampling Digital Filter
    High Res Re-master - enhanced for compressed audio
    Optimally Activated Circuit System\

Technics Definitive Design

  • High Rigidity Aluminium Cabinet
    Symmetric Structure

Output Power

  • 50 W + 50 W (1 kHz, T.H.D. 0.5 %, 8 Ω, 20 kHz LPF)
    100 W + 100 W (1 kHz, T.H.D. 0.5 %, 4 Ω, 20 kHz LPF)

Input Sensitivity / Input Impedance

  • LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ

Frequency Response

  • LINE 5 Hz - 80 kHz (-3 dB, 8 Ω),
    PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
    DIGITAL 5 Hz - 90 kHz (-3 dB, 8 Ω)

THD+N

  • 0.05 % (1 W at 1 kHz, 8 Ω, 20 kHz LPF)

Load Impedance

  • 4 - 16 Ω

Analogue Input Terminal

  • LINJE x 1, PHONO (MM) x 1

Digital Input Terminal

  • Koaksial digital x 2, optisk digital, USB-A, USB-B

USB-A

  • iPod/iPhone/iPad

    • Ja
  • Support Codec

    • WAV

      • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
    • FLAC

      • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
    • DSD

      • Yes (2.8224 MHz, 5.6448 MHz)
    • AIFF

      • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
    • ALAC

      • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
    • AAC

      • Ja (32, 44,1, 48, 88,2, 96 kHz / 16-320 kbps)
    • WMA

      • Ja (32, 44,1, 48 kHz / 16-320 kbps)
    • MP3

      • Ja (32, 44,1, 48 kHz / 16-320 kbps)
    • MQA

      • Ja

USB-DAC (USB-B)

  • USB Audio Class Specification

    • USB-lydklasse 2.0, asynkron modus
  • Support Codec

    • DSD

      • Ja (2,8224 MHz, 5,6448 MHz, 11,2896 MHz)
    • PCM

      • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192, 352,8, 384 kHz / 16, 24, 32 biter)
    • MQA

      • Ja

DLNA Support Codec

  • WAV

    • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
  • FLAC

    • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
  • DSD

    • Yes (2.8224 MHz, 5.6448 MHz)
  • AIFF

    • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
  • ALAC

    • Ja (32, 44,1, 48, 88,2, 96, 176,4, 192 kHz / 16, 24 biter)
  • AAC

    • Ja (32, 44,1, 48, 88,2, 96 kHz / 16-320 kbps)
  • WMA

    • Ja (32, 44,1, 48 kHz / 16-320 kbps)
  • MP3

    • Ja (32, 44,1, 48 kHz / 16-320 kbps)
  • MQA

    • Ja

Headphone Output

  • Yes

Ethernet Interface

  • LAN (100 Base-TX / 10 Base-T)

Wi-Fi

  • IEEE 802.11a/b/g/n
    2,4 GHz / 5 GHz-bpnd

AirPlay

  • Ja

Bluetooth® (Support Codec)

  • Ja (aptX® Low Latency, AAC, SBC)

TIDAL / vTuner / Spotify

  • Ja* / Ja* / Ja*
    *Kompatible musikktjenester vil støttes fortløpende gjennom oppdatering av programvaren.
    *Internett-tjenester drives av sine respektive eiere som uten forbehold kan avslutte sine tjenester midlertidig eller permanent. Noe innhold er kanskje ikke tilgjengelig i ditt land.
    *Registrering/abonnering kan være påkrevd. Avgifter kan tilkomme.

Power Supply

  • AC220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 96 W

Dimensions (W x H x D)

  • 430 x 98 x 424 mm

Weight

  • Approx. 11.5 kg

Accessories

  • Remote Control, AC Cord, Owner's Manual
