Direct Drive Turntable System SL-1200G

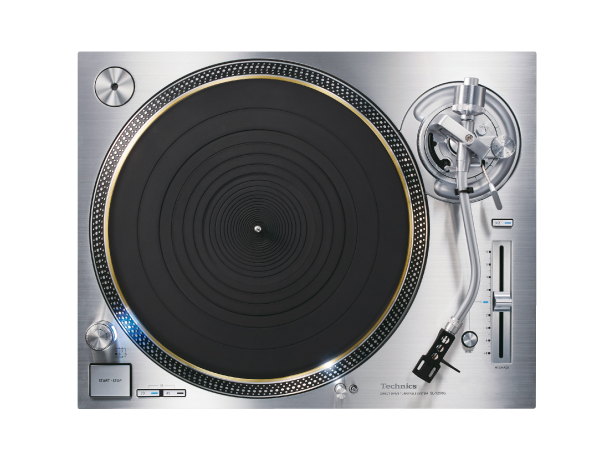

Photo of Direct Drive Turntable System SL-1200G

Turntable section

  • Type

    • Direct Drive Manual Turntable
  • Turntable Speeds

    • 33 1/3, 45, 78 rpm
  • Adjust Range

    • ±8%, ±16%
  • Starting Torque

    • 3.3 kg・cm (2.8 lb-in)
  • Build-up Characteristics

    • 0.7 s. from standstill to 33 1/3 r/min
  • Wow And Flutter

    • 0.025% W.R.M.S. (JIS C5521)
  • Rumble

    • 78dB (IEC 98A Weighted)
  • Turntable Platter

    • Brass and Aluminum diecast combined
      Diameter:332mm (13-5/64")
      Weight:About 3.6kg (7 15/16 lb) (Including rubber sheet)

Tonearm Section

  • Type

    • Universal Static Balance
  • Effective Length

    • 230mm (9-1/16")
  • Overhang

    • 15mm (19/32")
  • Tracking Error Angle

    • Within 2° 32' (at the outer groove of 30cm(12") record)
      Within 0° 32' (at the inner groove of 30cm(12") record)
  • Offset Angle

    • 22°
  • Arm-height Adjustment Range

    • 0 - 6 mm
  • Stylus Pressure Adjustment Range

    • 0 - 4 g (direct reading)
  • Head Shell Weight

    • Approx. 7.6 g
  • Applicable Cartridge Weight Range

    • (without auxiliary weight)
      5.6 - 12.0g
      14.3 - 20.7g (including headshell)
      (with small auxiliary weight)
      10.0 - 16.4g
      18.7 - 25.1g (including headshell)
      (with large auxiliary weight)
      14.3 - 19.8g
      23.0 - 28.5g (including headshell)
  • Cartridge Mounting Dimension

    • JIS 12.7 mm Interval
  • Head Shell Terminal Lug

    • 1.2 mm φ 4-pin Terminal Lug

Terminals

  • Audio Output

    • PHONO (Pin Jack) x 1
      EARTH TERMINAL x 1

General

  • Power Supply

    • AC120 V, 60 Hz
  • Power Consumption

    • 14 W Approx. 0.2W (Standby)
  • Dimensions (W x H x D)

    • 453 x 173 x 372 mm
      17-27/32 x 6-13/16 x 14-21/32 inch
  • Weight

    • Approx. 18 kg
      Approx. 39.7lbs
  • Accessories

    • Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight(S), Auxiliary weight(L), Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Screw set for turntable, Owner's Manual
