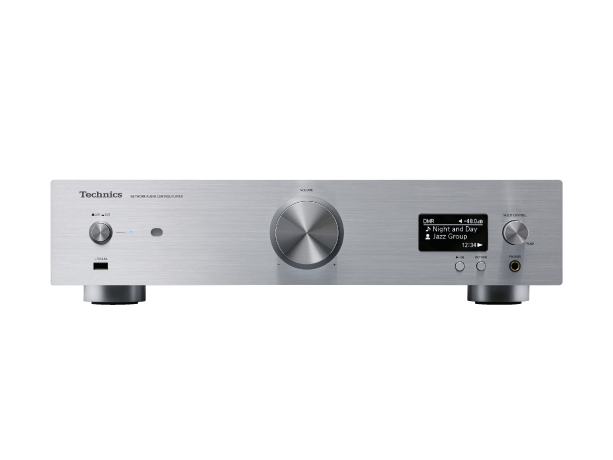

Lecteur réseau audio avec commande SU-R1
Technologie de signal sans bruit
-
Digital Noise Isolation Architecture
Virtual Battery Operation
Ultra Low Distortion Oversampling Digital Filter
High Res Re-master
Optimally Activated Circuit System
Technics Digital Link
Separated Analog/Digital Power Supply
High Quality Analog I/O Circuit
High Rigidity Metal Double Chassis
Design exclusif Technics
-
Aluminium Plain Miter Joint
Multi Control Knob
Symmetric Structure
Réponse en fréquence
-
2 Hz - 90 kHz (-3 dB)
Plage dynamique (IHF-A)
-
BALANCED 118 dB, UNBALANCED 115 dB
Rapport signal / bruit (IHF-A)
-
BALANCED 118 dB, UNBALANCED 115 dB
THD+N
-
0.0008 % (1 kHz, 0 dB)
Terminal d'entrée analogique
-
LINE x 2
DLNA - Formats audio (Codec) pris en charge
-
AES/EBU Digital x 1, Coaxial Digital x 3, Optical Digital x 1, USB-A, USB-B
USB-A
-
iPod/iPhone/iPad
-
Yes
-
-
Formats audio (Codec) pris en charge
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8224 MHz, 5.6448 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48kHz / 16-320kbps)
-
-
MP3
-
Yes (32, 44.1, 48kHz / 16-320kbps)
-
-
USB-DAC (USB-B)
-
Classe audio USB Spécification
-
USB Audio Class 2.0, Asynchronous Mode
-
-
Formats audio (Codec) pris en charge
-
DSD
-
Yes (2.8224 MHz, 5.6448 MHz)
-
-
PCM
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
-
-
DLNA codecs pris en charge
-
WAV
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
FLAC
-
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
-
-
DSD
-
Yes (2.8224 MHz, 5.6448 MHz)
-
-
AIFF
-
Yes (32, 44.1, 48, 88.2, 96, 192kHz / 16, 24bit)
-
-
ALAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)
-
-
AAC
-
Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
-
-
WMA
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
-
MP3
-
Yes (32, 44.1, 48 kHz / 16-320 kbps)
-
Terminal de sortie analogique
-
UNBALANCED x 1, BALANCED x 1
Terminal de sortie numérique
-
Technics Digital Link x 1, AES/EBU Digital x 1, Coaxial Digital x 1, Optical Digital x 1
Sortie casque
-
Yes
AirPlay
-
Yes
Interface Ethernet
-
LAN (100 Base-TX /10 Base-T)
Alimentation électrique
-
AC220-240V, 50Hz/60Hz
Consommation
-
60 W
Dimensions (L x H x P)
-
480 x 120 x 391 mm
Poids
-
Approx. 17 kg
Accessoires
-
Remote control, AC cords, Operating Instructions
